Understanding the mechanics of a 3rd class lever is fundamental for anyone interested in physics, engineering, or even everyday tasks that involve simple machines. Levers are one of the six simple machines identified by Renaissance scientists, and they are ubiquitous in our daily lives, from seesaws and wheelbarrows to tweezers and human bones. This post delves into the intricacies of 3rd class levers, their applications, and how they differ from other types of levers.
What is a Lever?
A lever is a rigid bar that pivots around a fixed point, known as the fulcrum. The lever amplifies the input force to lift or move a load. The three classes of levers are defined by the relative positions of the fulcrum, the effort (input force), and the load (output force).
Understanding the Three Classes of Levers
Levers are categorized into three classes based on the placement of the fulcrum, effort, and load. Here’s a brief overview:
- 1st Class Lever: The fulcrum is located between the effort and the load. Examples include seesaws and scissors.
- 2nd Class Lever: The load is between the fulcrum and the effort. Examples include wheelbarrows and nutcrackers.
- 3rd Class Lever: The effort is between the fulcrum and the load. Examples include tweezers, human arms, and fishing rods.
Characteristics of a 3rd Class Lever
A 3rd class lever is characterized by the effort being applied between the fulcrum and the load. This configuration allows for a mechanical advantage of less than 1, meaning the output force is less than the input force. However, 3rd class levers are advantageous in situations where speed and range of motion are more critical than force amplification.
Mechanical Advantage of a 3rd Class Lever
The mechanical advantage (MA) of a lever is calculated as the ratio of the load to the effort. For a 3rd class lever, the mechanical advantage is always less than 1. This can be expressed as:
MA = Load / Effort
Since the effort is between the fulcrum and the load, the effort arm is shorter than the load arm, resulting in a mechanical advantage of less than 1.
Applications of 3rd Class Levers
3rd class levers are widely used in various applications where speed and range of motion are more important than force amplification. Some common examples include:
- Human Arms and Legs: The bones, muscles, and joints in the human body act as 3rd class levers, allowing for a wide range of motion and speed.
- Tweezers: Used for precise tasks like plucking eyebrows or handling small objects, tweezers provide fine control and dexterity.
- Fishing Rods: The effort is applied between the fulcrum (the hand holding the rod) and the load (the fish at the end of the line), allowing for a quick and controlled motion.
- Shovels: When used to lift material, the effort is applied between the fulcrum (the point where the shovel touches the ground) and the load (the material being lifted).
Advantages and Disadvantages of 3rd Class Levers
3rd class levers have both advantages and disadvantages, depending on the application. Here’s a breakdown:
| Advantages | Disadvantages |
|---|---|
| Provide speed and range of motion | Mechanical advantage is less than 1, requiring more effort to lift the load |
| Allow for precise control and dexterity | Not suitable for tasks requiring significant force amplification |
| Common in biological systems for efficient movement | Effort arm is shorter than the load arm, reducing mechanical advantage |
Examples of 3rd Class Levers in Everyday Life
3rd class levers are all around us, often in forms we might not immediately recognize. Here are a few examples:
- Human Forearm: The elbow acts as the fulcrum, the biceps muscle provides the effort, and the hand holding an object is the load.
- Baseball Bat: The hands gripping the bat provide the fulcrum, the effort is applied by swinging the bat, and the load is the ball being hit.
- Crowbar: When used to pry open a lid, the fulcrum is the point where the crowbar touches the lid, the effort is applied between the fulcrum and the load (the lid).
💡 Note: The efficiency of a 3rd class lever can be improved by increasing the length of the effort arm relative to the load arm, but this often comes at the cost of reduced mechanical advantage.

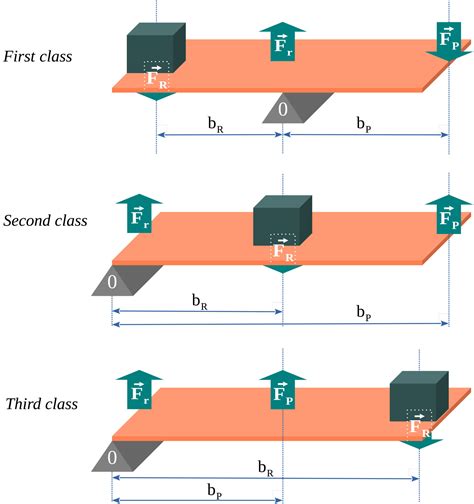

Comparing 3rd Class Levers to Other Classes
To better understand 3rd class levers, it’s helpful to compare them to 1st and 2nd class levers. Here’s a comparison:
| 1st Class Lever | 2nd Class Lever | 3rd Class Lever |
|---|---|---|
| Fulcrum between effort and load | Load between fulcrum and effort | Effort between fulcrum and load |
| Examples: Seesaw, Scissors | Examples: Wheelbarrow, Nutcracker | Examples: Tweezers, Human Arms, Fishing Rods |
| Mechanical advantage can be greater than, less than, or equal to 1 | Mechanical advantage is always greater than 1 | Mechanical advantage is always less than 1 |
Conclusion
3rd class levers are a fundamental concept in the study of simple machines and mechanics. They are characterized by the effort being applied between the fulcrum and the load, resulting in a mechanical advantage of less than 1. While they may not amplify force as effectively as 1st or 2nd class levers, 3rd class levers are invaluable in applications where speed, range of motion, and precise control are crucial. From human anatomy to everyday tools, 3rd class levers play a significant role in our lives, demonstrating the ingenuity of simple machines in solving complex problems.
