Carbon Orbital Diagram

Understanding the structure and behavior of carbon is fundamental to various fields of science, including chemistry, materials science, and environmental studies. One of the most effective tools for visualizing and comprehending the electronic structure of carbon is the Carbon Orbital Diagram. This diagram provides a clear representation of the energy levels and electron distribution within carbon atoms, which is crucial for understanding its chemical properties and reactivity.

Table of Contents

What is a Carbon Orbital Diagram?

A Carbon Orbital Diagram is a graphical representation of the electron orbitals in a carbon atom. Carbon has an atomic number of 6, meaning it has 6 protons and 6 electrons. The electrons are distributed in specific energy levels and orbitals, which can be visualized using the orbital diagram. This diagram helps in understanding the electronic configuration of carbon, which is essential for predicting its chemical behavior.

Electronic Configuration of Carbon

The electronic configuration of carbon can be represented as 1s²2s²2p². This means that carbon has two electrons in the 1s orbital, two electrons in the 2s orbital, and two electrons in the 2p orbital. The Carbon Orbital Diagram visually represents these electrons in their respective orbitals.

Constructing a Carbon Orbital Diagram

To construct a Carbon Orbital Diagram, follow these steps:

Identify the number of electrons in the carbon atom (6 electrons).
Determine the energy levels and orbitals available for these electrons. Carbon has three energy levels: 1s, 2s, and 2p.
Fill the orbitals with electrons according to the Aufbau principle, which states that electrons fill the lowest energy orbitals first.
Apply the Pauli exclusion principle, which states that no two electrons in the same orbital can have the same spin.
Use the Hund’s rule, which states that electrons fill degenerate orbitals (orbitals with the same energy level) singly before pairing up.

Here is a step-by-step guide to constructing the Carbon Orbital Diagram:

Start with the 1s orbital, which can hold a maximum of 2 electrons. Place two electrons in the 1s orbital.
Next, fill the 2s orbital, which can also hold 2 electrons. Place two electrons in the 2s orbital.
Finally, fill the 2p orbital, which can hold a maximum of 6 electrons. Place the remaining two electrons in the 2p orbital.

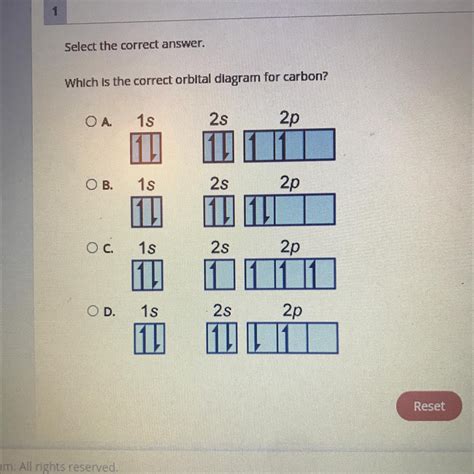

Below is a visual representation of the Carbon Orbital Diagram:

Orbital	Number of Electrons
1s	2
2s	2
2p	2

📝 Note: The 2p orbital has three sub-orbitals (2p_x, 2p_y, and 2p_z), but for carbon, only two of these sub-orbitals are filled with one electron each.

Importance of the Carbon Orbital Diagram

The Carbon Orbital Diagram is crucial for several reasons:

Understanding Chemical Bonding: The diagram helps in understanding how carbon forms bonds with other atoms. Carbon’s ability to form four covalent bonds is due to its electronic configuration, which allows it to share electrons with other atoms.
Predicting Reactivity: By knowing the electronic structure of carbon, scientists can predict its reactivity with other elements. This is essential in fields like organic chemistry, where carbon compounds are prevalent.
Materials Science: The electronic structure of carbon is fundamental to understanding its properties in various forms, such as graphite, diamond, and graphene. These forms have different electronic structures and properties, which are crucial for their applications in materials science.
Environmental Studies: Carbon’s electronic structure is also important in environmental studies, particularly in understanding carbon cycles and the behavior of carbon compounds in the environment.

Applications of the Carbon Orbital Diagram

The Carbon Orbital Diagram has numerous applications across various scientific disciplines:

Organic Chemistry: In organic chemistry, the diagram helps in understanding the structure and reactivity of organic compounds, which are primarily composed of carbon.
Inorganic Chemistry: The diagram is also useful in inorganic chemistry for understanding the bonding and properties of carbon-containing inorganic compounds.
Materials Science: In materials science, the diagram aids in the development of new carbon-based materials with unique properties, such as graphene and carbon nanotubes.
Environmental Science: The diagram is essential for understanding the behavior of carbon compounds in the environment, including their role in climate change and pollution.

Advanced Concepts in Carbon Orbital Diagrams

Beyond the basic Carbon Orbital Diagram, there are advanced concepts that provide deeper insights into the electronic structure of carbon:

Hybridization: Carbon can undergo hybridization, where its orbitals mix to form new hybrid orbitals. The most common types of hybridization in carbon are sp, sp², and sp³. These hybrid orbitals have different geometries and bonding properties, which are crucial for understanding the structure of organic compounds.

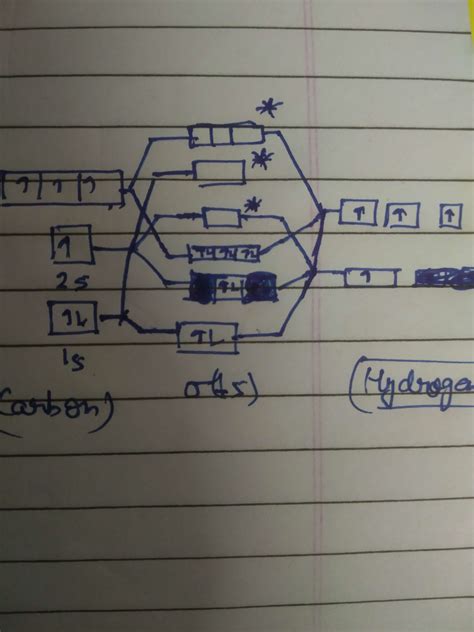

Molecular Orbital Theory: This theory extends the concept of atomic orbitals to molecular orbitals, which are formed by the combination of atomic orbitals from different atoms. Molecular orbital theory provides a more detailed understanding of the electronic structure of molecules, including those containing carbon.
Density Functional Theory (DFT): DFT is a computational method used to study the electronic structure of atoms and molecules. It provides a more accurate description of the electronic structure of carbon and its compounds, which is essential for predicting their properties and reactivity.

These advanced concepts build upon the basic Carbon Orbital Diagram and provide a more comprehensive understanding of carbon's electronic structure and properties.

Below is an image illustrating the hybridization of carbon orbitals:

📝 Note: The image above shows the sp³ hybridization of carbon, where one s orbital and three p orbitals combine to form four sp³ hybrid orbitals. This type of hybridization is common in organic compounds like methane (CH₄).

In conclusion, the Carbon Orbital Diagram is a powerful tool for understanding the electronic structure and properties of carbon. It provides a clear visual representation of the energy levels and electron distribution within carbon atoms, which is essential for predicting its chemical behavior and reactivity. The diagram has numerous applications in fields such as chemistry, materials science, and environmental studies, making it a fundamental concept in scientific education and research. By understanding the Carbon Orbital Diagram, scientists can gain deeper insights into the behavior of carbon and its compounds, leading to advancements in various scientific disciplines.
