Elkay water fountains are renowned for their durability and reliability, making them a popular choice for schools, offices, and public spaces. However, like any mechanical device, they require regular maintenance and occasional repairs. Understanding the various Elkay water fountain parts and their functions can help you keep your fountain in optimal condition. This guide will walk you through the essential components, common issues, and maintenance tips to ensure your Elkay water fountain operates smoothly.
Understanding the Key Components of Elkay Water Fountains
Elkay water fountains are composed of several key components, each playing a crucial role in the fountain's operation. Familiarizing yourself with these parts can make maintenance and repairs more straightforward.
Water Supply and Drainage System
The water supply and drainage system is the backbone of any Elkay water fountain. This system ensures a continuous flow of fresh water and proper drainage of used water. Key components include:
- Water Inlet Valve: Controls the flow of water into the fountain.
- Drain Valve: Allows for the drainage of water from the fountain.
- Water Lines: Tubes or pipes that carry water to and from the fountain.

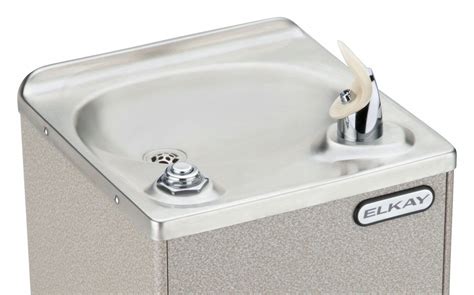

Bubbler Assembly
The bubbler assembly is the part of the fountain where users drink water. It includes several components that work together to provide a clean and safe drinking experience.
- Bubbler Head: The part that dispenses water.
- Actuator: The mechanism that activates the water flow when pressed.
- Filter: Removes impurities from the water.
Electrical Components
Modern Elkay water fountains often include electrical components that enhance their functionality. These components require careful handling and maintenance to ensure safety and proper operation.
- Control Box: Houses the electrical components that control the fountain's operation.
- Sensor: Detects when a user is present and activates the water flow.
- Power Cord: Provides electrical power to the fountain.
Structural Components
The structural components of an Elkay water fountain provide stability and support. These parts are essential for the fountain's overall durability and longevity.
- Base: The foundation of the fountain, providing stability.
- Column: The vertical support structure.
- Bracket: Supports the bubbler assembly and other components.
Common Issues with Elkay Water Fountain Parts
Even with regular maintenance, Elkay water fountains can encounter issues. Understanding common problems and their causes can help you address them promptly.
Water Flow Problems
Water flow issues are among the most common problems with Elkay water fountains. These issues can be caused by various factors, including:
- Clogged Filters: Dirty or clogged filters can restrict water flow.
- Faulty Water Inlet Valve: A malfunctioning valve can prevent water from entering the fountain.
- Air in the Water Lines: Air bubbles can disrupt the water flow.
🛠️ Note: Regularly cleaning or replacing filters can prevent many water flow issues.
Electrical Malfunctions
Electrical problems can affect the functionality of modern Elkay water fountains. Common electrical issues include:
- Faulty Sensors: Malfunctioning sensors can fail to detect users, preventing water flow.
- Damaged Power Cord: A damaged or frayed power cord can disrupt electrical supply.
- Control Box Issues: Problems with the control box can affect the fountain's overall operation.
🛠️ Note: Always ensure that electrical components are properly grounded and protected from moisture.
Structural Damage
Structural damage can compromise the stability and safety of an Elkay water fountain. Common structural issues include:
- Cracked Base: A cracked or damaged base can affect the fountain's stability.
- Loose Brackets: Loose or damaged brackets can cause the bubbler assembly to malfunction.
- Corroded Columns: Corrosion can weaken the structural integrity of the fountain.
🛠️ Note: Regular inspections can help identify and address structural issues before they become major problems.
Maintenance Tips for Elkay Water Fountain Parts
Regular maintenance is key to keeping your Elkay water fountain in good working condition. Here are some essential maintenance tips to help you prolong the life of your fountain.
Cleaning and Sanitizing
Cleaning and sanitizing your Elkay water fountain regularly can prevent the buildup of bacteria and other contaminants. Follow these steps:
- Turn off the water supply and unplug the fountain.
- Drain any remaining water from the fountain.
- Disassemble the bubbler assembly and other removable parts.
- Clean the parts with a mild detergent and warm water.
- Sanitize the parts with a food-grade sanitizer.
- Reassemble the fountain and restore the water supply.
🛠️ Note: Always follow the manufacturer's guidelines for cleaning and sanitizing your specific model.
Inspecting and Replacing Filters
Filters play a crucial role in maintaining water quality. Regular inspection and replacement of filters can prevent clogs and ensure clean water flow. Follow these steps:
- Locate the filter housing.
- Remove the filter and inspect it for dirt or debris.
- Clean or replace the filter as needed.
- Reassemble the filter housing and restore the water supply.
🛠️ Note: The frequency of filter replacement depends on water quality and usage. Check the manufacturer's recommendations for your specific model.
Checking Electrical Components
Regularly checking electrical components can help prevent malfunctions and ensure safety. Follow these steps:
- Inspect the power cord for any signs of damage.
- Check the control box for any visible issues.
- Test the sensors to ensure they are functioning properly.
- Ensure all electrical components are properly grounded and protected from moisture.
🛠️ Note: If you are not comfortable working with electrical components, consult a professional for assistance.
Inspecting Structural Components
Regular inspections of structural components can help identify and address issues before they become major problems. Follow these steps:
- Check the base for any cracks or damage.
- Inspect the column for signs of corrosion or weakness.
- Ensure all brackets are securely fastened.
- Tighten any loose bolts or screws.
🛠️ Note: If you notice any significant structural damage, consult a professional for repairs.
Troubleshooting Common Issues
When issues arise with your Elkay water fountain, prompt troubleshooting can help restore its functionality. Here are some common problems and their solutions.
No Water Flow
If your Elkay water fountain is not dispensing water, follow these troubleshooting steps:
- Check the water supply to ensure it is turned on.
- Inspect the water inlet valve for any blockages or malfunctions.
- Clean or replace the filter if it is clogged.
- Check for air in the water lines and bleed the system if necessary.
Intermittent Water Flow
If the water flow is intermittent, follow these troubleshooting steps:
- Inspect the water lines for any kinks or blockages.
- Check the water inlet valve for proper operation.
- Ensure the filter is clean and not restricting water flow.
- Test the sensors to ensure they are functioning correctly.
Electrical Malfunctions
If you encounter electrical issues, follow these troubleshooting steps:
- Check the power cord for any damage.
- Inspect the control box for any visible issues.
- Test the sensors to ensure they are functioning properly.
- Ensure all electrical components are properly grounded and protected from moisture.
Structural Issues
If you notice structural problems, follow these troubleshooting steps:
- Inspect the base for any cracks or damage.
- Check the column for signs of corrosion or weakness.
- Ensure all brackets are securely fastened.
- Tighten any loose bolts or screws.
Replacing Elkay Water Fountain Parts
Over time, some Elkay water fountain parts may need to be replaced to maintain the fountain's functionality. Knowing how to replace these parts can save you time and money.
Replacing the Bubbler Head
If the bubbler head is damaged or worn out, follow these steps to replace it:
- Turn off the water supply and unplug the fountain.
- Remove the old bubbler head by unscrewing it from the bubbler assembly.
- Install the new bubbler head by screwing it into place.
- Restore the water supply and test the fountain.
Replacing the Filter
If the filter is clogged or damaged, follow these steps to replace it:
- Turn off the water supply and unplug the fountain.
- Locate the filter housing and remove the old filter.
- Install the new filter according to the manufacturer's instructions.
- Reassemble the filter housing and restore the water supply.

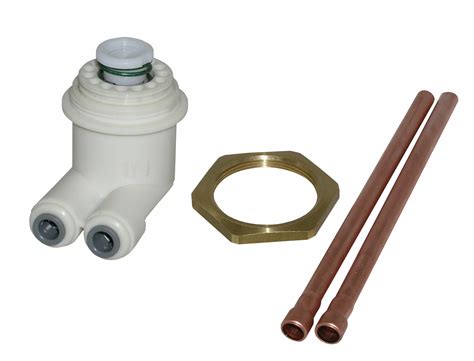

Replacing the Water Inlet Valve
If the water inlet valve is malfunctioning, follow these steps to replace it:
- Turn off the water supply and unplug the fountain.
- Locate the water inlet valve and remove it by unscrewing it from the water line.
- Install the new water inlet valve by screwing it into place.
- Restore the water supply and test the fountain.
Replacing the Sensor
If the sensor is not functioning properly, follow these steps to replace it:
- Turn off the water supply and unplug the fountain.
- Locate the sensor and remove it by unscrewing it from the control box.
- Install the new sensor by screwing it into place.
- Restore the power supply and test the fountain.
Ensuring Safety and Compliance
Safety and compliance are paramount when maintaining and repairing Elkay water fountains. Follow these guidelines to ensure a safe and compliant operation.
Safety Precautions
Always prioritize safety when working with Elkay water fountains. Follow these safety precautions:
- Turn off the water supply and unplug the fountain before performing any maintenance or repairs.
- Wear appropriate protective gear, including gloves and safety glasses.
- Avoid working with electrical components if you are not comfortable doing so.
- Ensure all tools and equipment are in good condition.
Compliance with Regulations
Elkay water fountains must comply with local and national regulations to ensure safety and hygiene. Follow these guidelines:
- Ensure the fountain meets all relevant health and safety standards.
- Regularly inspect and maintain the fountain to comply with regulations.
- Keep records of all maintenance and repairs for compliance purposes.
- Consult local regulations for specific requirements.
🛠️ Note: Always follow the manufacturer's guidelines for safety and compliance.
Conclusion
Elkay water fountains are a reliable and durable choice for providing clean drinking water in various settings. Understanding the key Elkay water fountain parts, common issues, and maintenance tips can help you keep your fountain in optimal condition. Regular cleaning, inspection, and replacement of parts are essential for ensuring the fountain’s longevity and functionality. By following the guidelines and troubleshooting steps outlined in this guide, you can address common issues promptly and maintain a safe and compliant operation. Proper care and maintenance will ensure that your Elkay water fountain continues to provide clean and refreshing water for years to come.
