Microscope With Labelled Parts

Exploring the intricate world of microscopy opens up a realm of discovery and understanding that is both fascinating and educational. A microscope with labelled parts is an essential tool for scientists, students, and enthusiasts alike, providing a detailed view of the microscopic world. This post delves into the components of a microscope with labelled parts, their functions, and how to use them effectively.

Table of Contents

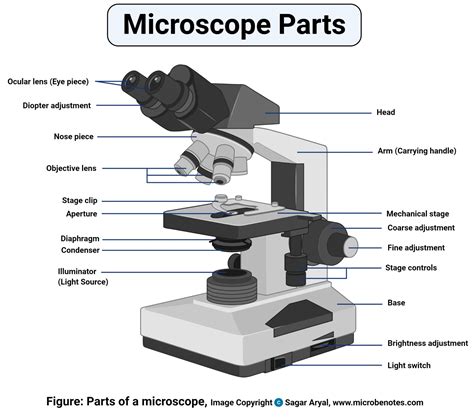

Understanding the Components of a Microscope with Labelled Parts

A microscope with labelled parts is designed to help users identify and understand each component's role in the magnification process. The basic components include the eyepiece, objective lenses, stage, stage clips, diaphragm, coarse adjustment knob, fine adjustment knob, arm, base, and illumination system. Each of these parts plays a crucial role in the functionality of the microscope.

Eyepiece (Ocular Lens)

The eyepiece, also known as the ocular lens, is the lens at the top of the microscope that you look through. It typically has a magnification power of 10x or 15x. The eyepiece works in conjunction with the objective lenses to provide the total magnification of the specimen.

Objective Lenses

Objective lenses are located near the specimen and are responsible for the primary magnification. Most microscopes come with three or four objective lenses, each with a different magnification power, usually 4x, 10x, 40x, and 100x. These lenses are often color-coded for easy identification.

Stage

The stage is the flat platform where you place your specimen. It is usually equipped with stage clips to hold the slide in place. The stage can be moved up and down using the coarse and fine adjustment knobs, allowing you to focus on different parts of the specimen.

Stage Clips

Stage clips are used to secure the slide in place on the stage. They ensure that the specimen remains stable during observation, preventing any movement that could affect the clarity of the image.

Diaphragm (Iris)

The diaphragm, also known as the iris, is located below the stage and controls the amount of light that reaches the specimen. Adjusting the diaphragm can enhance the contrast and clarity of the image, making it easier to observe fine details.

Coarse Adjustment Knob

The coarse adjustment knob is used for initial focusing. It moves the stage up and down in larger increments, allowing you to quickly bring the specimen into focus. This knob is particularly useful when switching between different objective lenses.

Fine Adjustment Knob

The fine adjustment knob is used for precise focusing. It moves the stage in smaller increments, allowing for detailed adjustments to achieve a clear and sharp image. This knob is essential for high-magnification observations.

Arm

The arm is the part of the microscope that connects the base to the body tube. It provides support and stability, allowing you to carry the microscope safely. The arm is also used to adjust the angle of the microscope for comfortable viewing.

Base

The base is the bottom part of the microscope that provides stability and support. It houses the illumination system and ensures that the microscope remains steady during use.

Illumination System

The illumination system provides the light necessary to view the specimen. It typically consists of a light source, such as a bulb or LED, and a mirror or condenser to direct the light onto the specimen. Proper illumination is crucial for obtaining clear and detailed images.

Using a Microscope with Labelled Parts

To effectively use a microscope with labelled parts, follow these steps:

Prepare the Specimen: Place the specimen on a clean slide and cover it with a coverslip. Ensure that the specimen is properly prepared to avoid any contamination or damage.
Position the Slide: Secure the slide on the stage using the stage clips. Make sure the specimen is centered under the objective lens.
Adjust the Light: Turn on the illumination system and adjust the diaphragm to control the amount of light reaching the specimen. Start with a low level of light and increase it as needed.
Initial Focusing: Use the coarse adjustment knob to move the stage up and down until the specimen comes into focus. Start with the lowest magnification objective lens (4x) for initial focusing.
Fine-Tuning: Once the specimen is in focus, switch to a higher magnification objective lens (10x, 40x, or 100x) and use the fine adjustment knob to achieve a clear and sharp image.
Observe and Document: Carefully observe the specimen through the eyepiece, noting any details or features of interest. Document your observations for future reference.

🔍 Note: Always handle the microscope with care to avoid damaging the delicate components. Ensure that the microscope is properly cleaned and maintained to prolong its lifespan.

Maintaining a Microscope with Labelled Parts

Maintaining a microscope with labelled parts is essential for ensuring its longevity and optimal performance. Regular cleaning and proper storage can help prevent damage and ensure accurate observations. Here are some tips for maintaining your microscope:

Cleaning the Lenses: Use a lens cleaning solution and a soft, lint-free cloth to clean the objective lenses and eyepiece. Avoid using harsh chemicals or abrasive materials that could scratch the lenses.
Storing the Microscope: When not in use, store the microscope in a cool, dry place away from direct sunlight and moisture. Cover the microscope with a dust cover to protect it from dust and debris.
Handling the Microscope: Always handle the microscope with care, avoiding any sudden movements or impacts that could damage the delicate components. Use both hands to carry the microscope, supporting the base and the arm.
Regular Inspections: Periodically inspect the microscope for any signs of wear or damage. Check the illumination system, stage, and lenses for any issues that may affect performance.

🛠️ Note: If you encounter any issues with your microscope, consult the user manual or seek professional assistance to ensure proper repair and maintenance.

Common Issues and Troubleshooting

Even with proper maintenance, you may encounter issues while using a microscope with labelled parts. Here are some common problems and their solutions:

Blurry Images: If the image appears blurry, check the focus using the fine adjustment knob. Ensure that the specimen is properly prepared and that the objective lens is clean.
Insufficient Light: If the specimen is too dark, adjust the diaphragm to increase the amount of light. Check the illumination system to ensure that the light source is functioning properly.
Specimen Movement: If the specimen moves during observation, secure the slide with the stage clips. Ensure that the stage is stable and that the microscope is placed on a flat surface.
Lens Contamination: If the lenses are contaminated with dust or debris, clean them using a lens cleaning solution and a soft, lint-free cloth. Avoid using harsh chemicals or abrasive materials.

🔧 Note: Regular maintenance and proper handling can help prevent many common issues. Always follow the manufacturer's guidelines for cleaning and storing your microscope.

Advanced Techniques with a Microscope with Labelled Parts

For those looking to explore more advanced techniques, a microscope with labelled parts offers a range of possibilities. Here are some advanced techniques to enhance your microscopic observations:

Phase Contrast Microscopy: This technique uses phase contrast to enhance the visibility of transparent specimens. It is particularly useful for observing living cells and tissues.
Fluorescence Microscopy: This technique uses fluorescent dyes to label specific components within a specimen. It allows for the visualization of cellular structures and processes that are not visible with standard light microscopy.
Confocal Microscopy: This technique uses laser light to scan the specimen and create high-resolution images. It is particularly useful for observing thick specimens and three-dimensional structures.
Electron Microscopy: This technique uses a beam of electrons to create highly magnified images of specimens. It is used for observing very small structures, such as viruses and cellular organelles.

🔬 Note: Advanced techniques often require specialized equipment and training. Consult with a professional or refer to specialized resources for guidance on these techniques.

Educational Applications of a Microscope with Labelled Parts

A microscope with labelled parts is an invaluable tool in educational settings, providing students with hands-on experience in scientific observation and analysis. Here are some educational applications:

Biology Classes: Students can use the microscope to observe cellular structures, such as plant and animal cells, and understand the basic principles of cell biology.
Microbiology Labs: Students can study microorganisms, such as bacteria and fungi, and learn about their roles in ecosystems and human health.
Environmental Science: Students can examine environmental samples, such as water and soil, to identify microorganisms and assess water quality.
Forensic Science: Students can analyze forensic evidence, such as hair and fiber samples, to understand the principles of forensic microscopy.

📚 Note: Incorporating a microscope with labelled parts into the curriculum can enhance students' understanding of scientific concepts and foster a love for scientific inquiry.

Exploring the Microscopic World

Using a microscope with labelled parts opens up a world of discovery and exploration. Whether you are a student, scientist, or enthusiast, the microscope provides a unique perspective on the microscopic world. By understanding the components and functions of a microscope with labelled parts, you can enhance your observations and gain deeper insights into the natural world.

Here is a table summarizing the key components of a microscope with labelled parts and their functions:

Component	Function
Eyepiece (Ocular Lens)	Provides the final magnification of the specimen.
Objective Lenses	Provide the primary magnification of the specimen.
Stage	Holds the specimen slide in place.
Stage Clips	Secure the slide on the stage.
Diaphragm (Iris)	Controls the amount of light reaching the specimen.
Coarse Adjustment Knob	Used for initial focusing.
Fine Adjustment Knob	Used for precise focusing.
Arm	Provides support and stability.
Base	Provides stability and houses the illumination system.
Illumination System	Provides the light necessary to view the specimen.

By mastering the use of a microscope with labelled parts, you can unlock a world of scientific discovery and exploration. Whether you are studying biology, microbiology, or environmental science, the microscope is an essential tool for understanding the microscopic world.

In conclusion, a microscope with labelled parts is a powerful tool for scientific observation and analysis. By understanding the components and functions of the microscope, you can enhance your observations and gain deeper insights into the natural world. Whether you are a student, scientist, or enthusiast, the microscope provides a unique perspective on the microscopic world, opening up a realm of discovery and understanding.
