In the realm of industrial and commercial construction, the importance of pipe hangers and supports cannot be overstated. These essential components play a crucial role in ensuring the stability, safety, and longevity of piping systems. Whether in plumbing, HVAC, or industrial applications, proper pipe support is vital for maintaining the integrity of the system and preventing costly repairs. This blog post delves into the various types of pipe hangers and supports, their applications, and best practices for installation and maintenance.
Understanding Pipe Hangers and Supports
Pipe hangers and supports are designed to secure pipes in place, preventing them from sagging, vibrating, or moving due to external forces. They come in various shapes, sizes, and materials to accommodate different types of pipes and installation environments. The primary function of these supports is to distribute the weight of the pipes and their contents evenly, reducing stress on the piping system and the building structure.
Types of Pipe Hangers and Supports

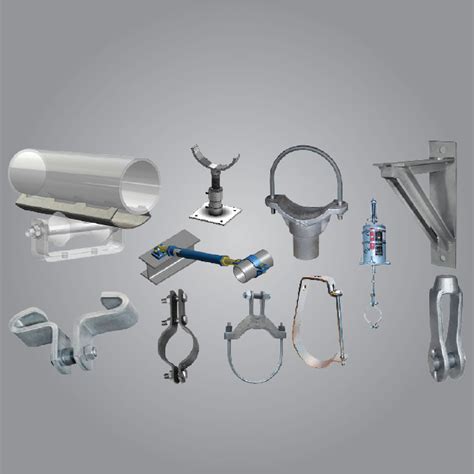

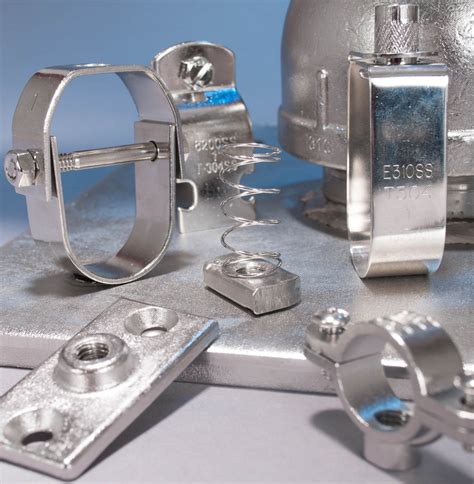

There are several types of pipe hangers and supports, each suited to specific applications and conditions. Understanding the different types can help in selecting the right support for your project.
Rigid Supports
Rigid supports are designed to provide fixed points of attachment for pipes. They are typically used in applications where minimal movement is required. Common types of rigid supports include:

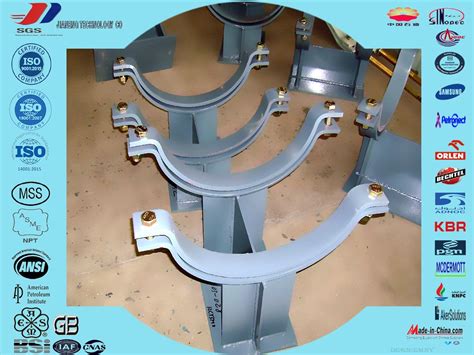

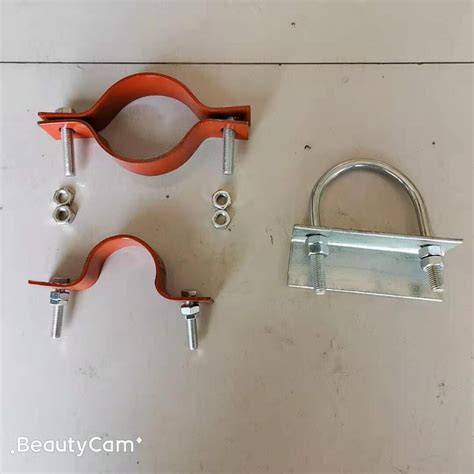

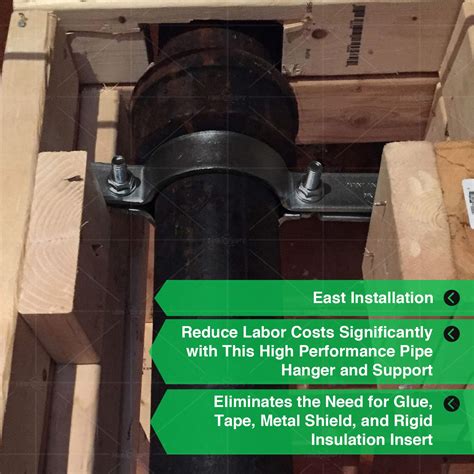

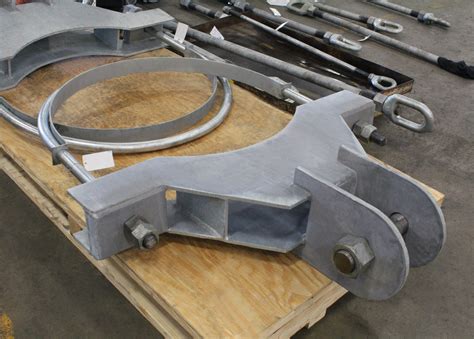

- Pipe Clamps: These are used to secure pipes to walls, ceilings, or other structural elements. They come in various sizes and materials, including steel, stainless steel, and plastic.
- Pipe Saddles: These supports are used to secure pipes to beams or other horizontal surfaces. They provide a stable base for the pipe and can be adjusted to fit different pipe sizes.

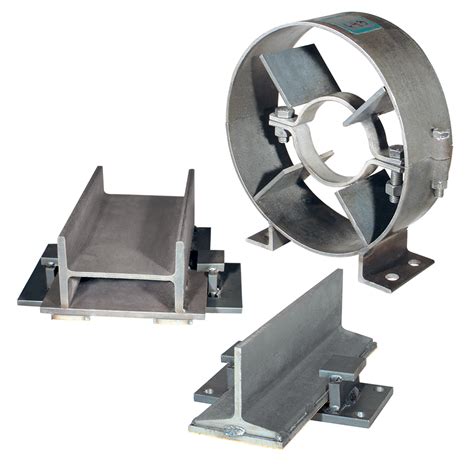

- Pipe Shoes: These are used to support pipes at changes in direction or elevation. They provide a stable base and can be adjusted to fit different pipe angles.
Flexible Supports
Flexible supports allow for some movement of the pipes, which is essential in applications where thermal expansion or contraction occurs. Common types of flexible supports include:
- Spring Hangers: These supports use a spring mechanism to absorb the weight of the pipe and allow for vertical movement. They are commonly used in HVAC systems and other applications where thermal expansion is a concern.

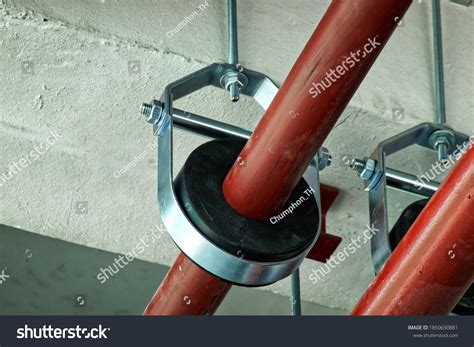

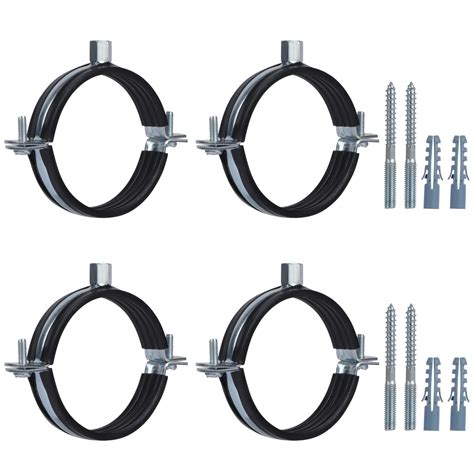

- Rubber Hangers: These supports use rubber or other flexible materials to absorb vibrations and allow for some movement. They are often used in plumbing and HVAC applications.
- Neoprene Hangers: These supports use neoprene, a synthetic rubber, to provide flexibility and vibration absorption. They are commonly used in industrial applications where chemical resistance is required.
Specialty Supports
Specialty supports are designed for specific applications and conditions. They may include features such as insulation, corrosion resistance, or custom shapes. Common types of specialty supports include:
- Insulated Supports: These supports include insulation to protect the pipe from extreme temperatures or to prevent condensation. They are commonly used in HVAC and industrial applications.
- Corrosion-Resistant Supports: These supports are made from materials that resist corrosion, such as stainless steel or plastic. They are used in applications where the pipe is exposed to corrosive substances.
- Custom Supports: These supports are designed to fit specific pipe configurations or installation environments. They may include features such as custom shapes, sizes, or materials.
Applications of Pipe Hangers and Supports
Pipe hangers and supports are used in a wide range of applications, from residential plumbing to large-scale industrial projects. Some of the most common applications include:
- Plumbing: In residential and commercial buildings, pipe hangers and supports are used to secure water supply and drainage pipes. They help prevent leaks, reduce noise, and ensure the longevity of the plumbing system.
- HVAC: In heating, ventilation, and air conditioning systems, pipe hangers and supports are used to secure ducts, pipes, and other components. They help absorb vibrations, reduce noise, and prevent thermal expansion issues.
- Industrial: In industrial settings, pipe hangers and supports are used to secure pipes carrying chemicals, gases, or other substances. They must be durable, corrosion-resistant, and able to withstand extreme temperatures and pressures.
Best Practices for Installation and Maintenance
Proper installation and maintenance of pipe hangers and supports are crucial for ensuring the safety and longevity of the piping system. Here are some best practices to follow:
Installation Tips
When installing pipe hangers and supports, it is important to follow these guidelines:
- Choose the Right Support: Select a support that is appropriate for the type of pipe, the installation environment, and the expected loads. Consider factors such as material, size, and flexibility.
- Follow Manufacturer Instructions: Always follow the manufacturer's instructions for installation. This includes using the correct tools, fasteners, and techniques.
- Ensure Proper Alignment: Make sure the pipe is properly aligned and level before securing it with supports. This helps prevent stress on the pipe and ensures proper flow.
- Use Adequate Spacing: Space supports evenly along the length of the pipe to distribute the weight and prevent sagging. The spacing will depend on the type of pipe, the material, and the expected loads.
Maintenance Tips
Regular maintenance of pipe hangers and supports is essential for preventing failures and ensuring the longevity of the piping system. Here are some maintenance tips:
- Inspect Regularly: Conduct regular inspections of the pipe hangers and supports to check for signs of wear, corrosion, or damage. Look for cracks, rust, or loose fasteners.
- Tighten Fasteners: Over time, fasteners can loosen due to vibrations or thermal expansion. Regularly check and tighten fasteners as needed.
- Replace Damaged Supports: If a support is damaged or corroded, replace it immediately to prevent further damage to the piping system.
- Clean and Lubricate: Keep supports clean and free of debris. Lubricate moving parts, such as springs or hinges, to ensure smooth operation.
🔧 Note: Always use appropriate personal protective equipment (PPE) when installing or maintaining pipe hangers and supports. This includes gloves, safety glasses, and hard hats.
Common Issues and Troubleshooting
Even with proper installation and maintenance, issues can arise with pipe hangers and supports. Here are some common problems and troubleshooting tips:
Pipe Sagging
If a pipe begins to sag, it may be due to inadequate support or excessive weight. To troubleshoot:
- Check the spacing of the supports and ensure they are evenly distributed.
- Verify that the supports are securely fastened and can handle the weight of the pipe.
- Consider adding additional supports or using heavier-duty supports.
Vibration and Noise
Excessive vibration and noise can indicate that the supports are not absorbing vibrations properly. To troubleshoot:
- Check the type of support and ensure it is suitable for the application. Flexible supports may be needed to absorb vibrations.
- Inspect the fasteners and ensure they are tight and secure.
- Consider adding vibration-damping materials, such as rubber or neoprene, to the supports.
Corrosion
Corrosion can weaken supports and compromise the integrity of the piping system. To troubleshoot:
- Inspect the supports for signs of corrosion, such as rust or pitting.
- Replace corroded supports with corrosion-resistant materials, such as stainless steel or plastic.
- Apply corrosion-resistant coatings or paints to protect the supports from further damage.
Selecting the Right Pipe Hangers and Supports
Choosing the right pipe hangers and supports is crucial for the success of any piping project. Here are some factors to consider when selecting supports:
Pipe Material and Size
The material and size of the pipe will determine the type and size of the support needed. Common pipe materials include:
- Steel
- Stainless Steel
- Copper
- PVC
- CPVC
Each material has its own properties and requirements, so it is important to select a support that is compatible with the pipe material.
Load and Weight
The weight of the pipe and its contents will determine the load-bearing capacity required of the support. Consider the following factors:
- The weight of the pipe itself
- The weight of the fluid or substance being carried
- Any additional loads, such as insulation or coatings
Select a support that can handle the total load without failing or deforming.
Environmental Conditions
The installation environment will also influence the selection of pipe hangers and supports. Consider factors such as:
- Temperature
- Humidity
- Corrosive substances
- Vibration and movement
Choose supports that are designed to withstand the specific environmental conditions of the installation site.
Regulatory Requirements
Depending on the application, there may be regulatory requirements or industry standards that dictate the type and installation of pipe hangers and supports. Common standards include:
- ASME B31.1: Power Piping
- ASME B31.3: Process Piping
- ASME B31.9: Building Services Piping
- NFPA 13: Standard for the Installation of Sprinkler Systems
Ensure that the selected supports comply with all relevant regulations and standards.
Case Studies
To illustrate the importance of proper pipe support, let's examine a few case studies:
Residential Plumbing Project
In a residential plumbing project, the homeowner noticed that the water supply pipes were sagging and making noise. Upon inspection, it was found that the original pipe hangers were inadequate for the weight and movement of the pipes. The homeowner replaced the hangers with flexible rubber supports, which absorbed vibrations and provided better support. The result was a quieter, more stable plumbing system.
Industrial Chemical Plant
In an industrial chemical plant, the pipes carrying corrosive chemicals were showing signs of corrosion and leakage. The plant engineers discovered that the original pipe supports were not corrosion-resistant and had deteriorated over time. They replaced the supports with stainless steel supports, which provided better corrosion resistance and durability. The plant was able to avoid costly downtime and repairs.
Commercial HVAC System
In a commercial HVAC system, the ducts and pipes were vibrating excessively, causing noise and potential damage to the system. The HVAC technicians found that the original supports were not designed to absorb vibrations. They installed spring hangers, which provided better vibration absorption and reduced noise. The HVAC system operated more smoothly and quietly.
These case studies highlight the importance of selecting the right pipe hangers and supports for the specific application and conditions. Proper support ensures the safety, longevity, and efficiency of the piping system.
In conclusion, pipe hangers and supports play a vital role in the stability, safety, and longevity of piping systems. Understanding the different types of supports, their applications, and best practices for installation and maintenance is essential for ensuring the success of any piping project. By selecting the right supports and following proper installation and maintenance procedures, you can prevent costly repairs, reduce downtime, and ensure the reliability of your piping system.
