Installing a new shower pan drain assembly can be a daunting task, but with the right tools and knowledge, it can be a straightforward process. This guide will walk you through the steps to install a shower pan drain assembly, ensuring a watertight and functional shower drain system.
Understanding the Shower Pan Drain Assembly

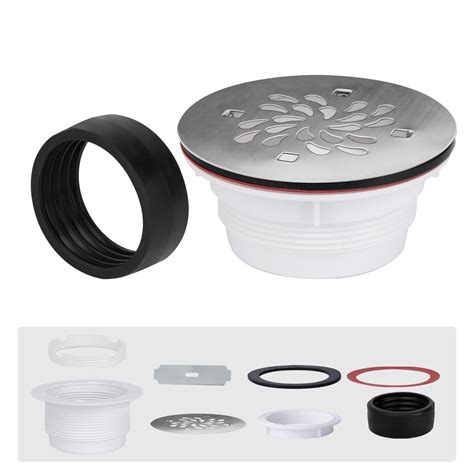

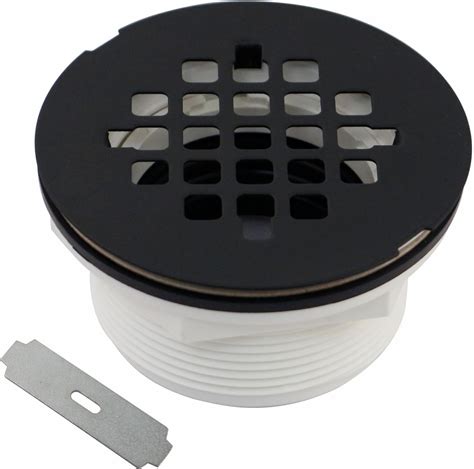

A shower pan drain assembly is a critical component of any shower installation. It consists of several parts, including the drain body, drain flange, and drain pipe. The drain body is the main part that sits in the shower pan and collects water. The drain flange connects the drain body to the drain pipe, which carries the water away from the shower.
Tools and Materials Needed
Before you begin, gather the following tools and materials:
- Shower pan drain assembly kit
- Screwdriver
- Adjustable wrench
- Level
- Caulk gun
- Silicone caulk
- Tape measure
- Utility knife
- Safety glasses
- Work gloves
Preparing the Shower Pan
Before installing the shower pan drain assembly, ensure that the shower pan is properly prepared. The pan should be clean, dry, and free of any debris. If the pan is not level, use a level to adjust it before proceeding.
Measure the center of the shower pan where the drain will be installed. Mark this spot with a pencil. This will be the location for the drain body.
Installing the Drain Body
Place the drain body into the marked spot on the shower pan. Ensure that the drain body is level and centered. Use a level to check for any unevenness and adjust as necessary.
Apply a bead of silicone caulk around the base of the drain body. This will create a watertight seal between the drain body and the shower pan. Press the drain body firmly into place, ensuring that it is securely attached to the pan.
Allow the caulk to dry according to the manufacturer's instructions before proceeding. This is typically around 24 hours, but it can vary depending on the type of caulk used.
🛠️ Note: Ensure that the drain body is properly aligned and level to prevent water from pooling in the shower.
Connecting the Drain Flange
Once the caulk has dried, attach the drain flange to the drain body. The flange should fit snugly over the drain body and be secured with screws or bolts, depending on the specific design of your shower pan drain assembly.
Use a screwdriver or adjustable wrench to tighten the screws or bolts, ensuring that the flange is securely attached to the drain body. Be careful not to overtighten, as this can damage the components.
Installing the Drain Pipe
Connect the drain pipe to the drain flange. The drain pipe should be the appropriate size and length to fit your plumbing system. Use a level to ensure that the pipe is properly aligned and sloped correctly to allow water to flow away from the shower.
Secure the drain pipe to the drain flange using the provided clips or brackets. Tighten the connections with an adjustable wrench, ensuring that they are secure but not overtightened.
Test the drain pipe for leaks by pouring water into the drain body and observing the flow. If there are any leaks, tighten the connections or apply additional caulk as needed.
🛠️ Note: Ensure that the drain pipe is properly sloped to prevent water from backing up into the shower.
Sealing the Drain Assembly
Once the drain pipe is securely connected and tested for leaks, apply a bead of silicone caulk around the base of the drain flange. This will create a watertight seal between the flange and the shower pan, preventing water from leaking underneath.
Allow the caulk to dry according to the manufacturer's instructions before proceeding. This is typically around 24 hours, but it can vary depending on the type of caulk used.
Final Inspection
After the caulk has dried, perform a final inspection of the shower pan drain assembly. Check for any leaks or unevenness in the drain body or flange. Ensure that all connections are secure and that the drain pipe is properly aligned and sloped.
Test the drain assembly by running water into the shower and observing the flow. If everything is working correctly, the water should drain smoothly and there should be no leaks or pooling.
If you encounter any issues, such as leaks or improper drainage, troubleshoot the problem and make the necessary adjustments. This may involve tightening connections, applying additional caulk, or adjusting the slope of the drain pipe.
🛠️ Note: Regularly inspect and maintain your shower pan drain assembly to ensure it remains in good working condition.
Common Issues and Troubleshooting
Even with careful installation, issues can arise with a shower pan drain assembly. Here are some common problems and their solutions:
- Leaks: If you notice water leaking from the drain assembly, check all connections for tightness. Apply additional caulk if necessary.
- Poor Drainage: If water is not draining properly, ensure that the drain pipe is properly sloped. Clear any clogs or debris from the drain.
- Uneven Drain Body: If the drain body is not level, adjust it and apply additional caulk to secure it in place.
- Loose Connections: If any part of the drain assembly is loose, tighten the screws or bolts and apply additional caulk if needed.
Maintenance Tips
To keep your shower pan drain assembly in good working condition, follow these maintenance tips:
- Regularly clean the drain to prevent clogs and buildup.
- Inspect the drain assembly for leaks or damage and make repairs as needed.
- Ensure that the drain pipe is properly sloped and clear of debris.
- Apply additional caulk if necessary to maintain a watertight seal.
By following these maintenance tips, you can extend the lifespan of your shower pan drain assembly and ensure that it continues to function properly.
Installing a shower pan drain assembly requires careful attention to detail and proper tools. By following the steps outlined in this guide, you can ensure a watertight and functional shower drain system. Regular maintenance and inspection will help keep your shower pan drain assembly in good working condition for years to come.
Installing a shower pan drain assembly is a crucial step in any shower installation project. By understanding the components and following the proper installation steps, you can ensure a watertight and functional drain system. Regular maintenance and inspection will help keep your shower pan drain assembly in good working condition, providing you with a reliable and efficient shower experience.
