Simple Machines Examples

Simple machines are the fundamental building blocks of more complex mechanical systems. They are devices that change the direction or magnitude of a force. Understanding simple machines examples is crucial for grasping the principles of mechanics and engineering. These machines have been used since ancient times and continue to be essential in modern technology. This post will delve into the various types of simple machines, their applications, and how they work together to perform complex tasks.

Table of Contents

Types of Simple Machines

There are six basic types of simple machines: the lever, the wheel and axle, the pulley, the inclined plane, the wedge, and the screw. Each of these machines has unique characteristics and applications. Let's explore each type in detail.

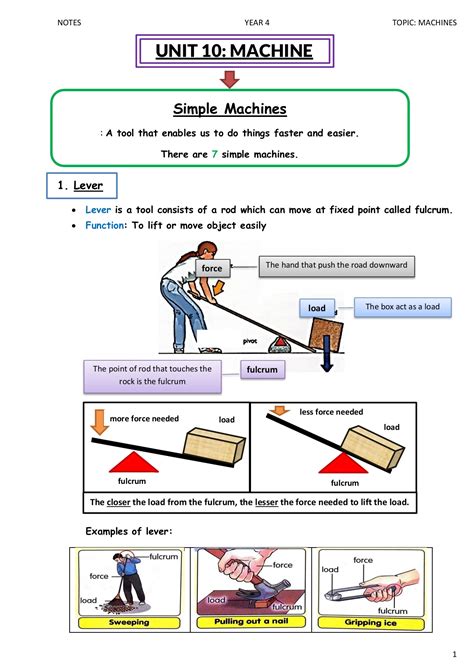

The Lever

The lever is one of the most basic and widely used simple machines examples. It consists of a rigid bar that pivots around a fixed point called the fulcrum. Levers are classified into three types based on the position of the fulcrum, the effort (input force), and the load (output force).

First-Class Lever: The fulcrum is located between the effort and the load. Examples include seesaws and scissors.
Second-Class Lever: The load is between the fulcrum and the effort. Examples include wheelbarrows and nutcrackers.
Third-Class Lever: The effort is between the fulcrum and the load. Examples include tweezers and human arms.

Levers are used to amplify force, change the direction of force, or increase the speed of movement. They are essential in various tools and machinery, from simple household items to complex industrial equipment.

The Wheel and Axle

The wheel and axle is another fundamental simple machine example. It consists of a circular object (the wheel) that rotates around a central rod (the axle). This machine is used to reduce friction and transmit rotational motion. Wheels and axles are found in various applications, from bicycles and cars to windmills and gears.

The mechanical advantage of a wheel and axle is determined by the ratio of the wheel's radius to the axle's radius. A larger wheel radius relative to the axle radius provides a greater mechanical advantage, making it easier to move heavy loads.

The Pulley

A pulley is a simple machine that consists of a wheel with a groove around its edge, designed to hold a rope or cable. Pulleys are used to change the direction of a force and to lift heavy objects. There are two main types of pulleys: fixed and movable.

Fixed Pulley: The pulley is attached to a fixed point, and the rope moves through it. This type of pulley changes the direction of the force but does not provide a mechanical advantage. Examples include flagpoles and clotheslines.
Movable Pulley: The pulley moves with the load, and the rope is attached to a fixed point. This type of pulley provides a mechanical advantage, making it easier to lift heavy objects. Examples include cranes and elevators.

Pulleys are often combined in systems to increase mechanical advantage. For example, a block and tackle system uses multiple pulleys to lift heavy loads with less effort.

The Inclined Plane

The inclined plane is a simple machine that consists of a flat surface that is higher on one end than the other. It is used to raise or lower objects with less force than would be required to lift them vertically. The mechanical advantage of an inclined plane is determined by the ratio of the length of the plane to its height.

Inclined planes are used in various applications, from ramps and stairs to conveyor belts and escalators. They are essential in construction, transportation, and everyday activities.

The Wedge

A wedge is a simple machine that consists of two inclined planes joined together. It is used to split or lift objects by applying force along the length of the wedge. The mechanical advantage of a wedge is determined by the ratio of its length to its width.

Wedges are used in various tools and machinery, from axes and knives to doorstops and nails. They are essential in construction, woodworking, and everyday tasks.

The Screw

The screw is a simple machine that consists of an inclined plane wrapped around a cylinder. It is used to hold objects together or to lift objects by applying rotational force. The mechanical advantage of a screw is determined by the pitch (the distance between threads) and the diameter of the screw.

Screws are used in various applications, from bolts and screws to drills and jacks. They are essential in construction, manufacturing, and everyday tasks.

Applications of Simple Machines

Simple machines are used in a wide range of applications, from everyday tools to complex machinery. Understanding simple machines examples and their applications is crucial for engineers, designers, and anyone interested in mechanics. Here are some common applications of simple machines:

Construction: Simple machines are used in various construction tools and equipment, such as cranes, pulleys, and ramps. They help in lifting heavy objects, moving materials, and building structures.
Transportation: Simple machines are essential in transportation, from wheels and axles in vehicles to pulleys in elevators and escalators. They help in moving people and goods efficiently.
Manufacturing: Simple machines are used in various manufacturing processes, from screws and bolts to conveyor belts and gears. They help in assembling products, moving materials, and automating tasks.
Everyday Tasks: Simple machines are used in everyday tools and equipment, from scissors and knives to doorstops and ramps. They help in performing tasks more efficiently and with less effort.

Combining Simple Machines

Simple machines can be combined to create more complex mechanical systems. By combining different types of simple machines, engineers can achieve greater mechanical advantage, change the direction of force, and perform more complex tasks. Here are some examples of combined simple machines:

Block and Tackle: This system combines multiple pulleys to lift heavy objects with less effort. It provides a high mechanical advantage and is used in cranes, elevators, and other lifting equipment.
Gear System: This system combines wheels and axles with teeth to transmit rotational motion and change the direction of force. It is used in clocks, vehicles, and other machinery.
Screw Jack: This system combines a screw with a lever to lift heavy objects. It provides a high mechanical advantage and is used in jacks, presses, and other lifting equipment.

Combining simple machines allows for greater versatility and efficiency in mechanical systems. Engineers can design complex machinery that performs specific tasks by understanding how different simple machines work together.

Simple Machines in Everyday Life

Simple machines are not just found in complex machinery; they are also present in everyday objects and tools. Recognizing simple machines examples in everyday life can help us understand how these devices work and appreciate their importance. Here are some examples of simple machines in everyday life:

Lever: Scissors, tweezers, and bottle openers are examples of levers in everyday life. They help in cutting, gripping, and opening objects with less effort.
Wheel and Axle: Bicycles, cars, and wheelbarrows are examples of wheel and axle systems in everyday life. They help in moving people and goods efficiently.
Pulley: Clotheslines, flagpoles, and window blinds are examples of pulleys in everyday life. They help in lifting and moving objects with less effort.
Inclined Plane: Ramps, stairs, and conveyor belts are examples of inclined planes in everyday life. They help in raising or lowering objects with less force.
Wedge: Axes, knives, and doorstops are examples of wedges in everyday life. They help in splitting, lifting, and holding objects in place.
Screw: Bolts, screws, and drills are examples of screws in everyday life. They help in holding objects together and lifting objects with rotational force.

Recognizing simple machines in everyday life can help us appreciate their importance and understand how they work. By understanding the principles of simple machines, we can use them more effectively and efficiently in our daily tasks.

💡 Note: Simple machines are the foundation of more complex mechanical systems. Understanding their principles and applications can help in designing and using machinery more effectively.

Simple machines are essential in various fields, from engineering and construction to manufacturing and everyday tasks. By understanding simple machines examples and their applications, we can appreciate their importance and use them more effectively in our daily lives. Whether it's lifting heavy objects, moving materials, or performing complex tasks, simple machines play a crucial role in making our lives easier and more efficient.

Simple machines have been used since ancient times and continue to be essential in modern technology. From the lever and wheel and axle to the pulley and screw, each simple machine has unique characteristics and applications. By combining different types of simple machines, engineers can create more complex mechanical systems that perform specific tasks with greater efficiency and versatility. Recognizing simple machines in everyday life can help us understand how these devices work and appreciate their importance in our daily tasks.
