Sprinkler System Backflow Valve

Maintaining a healthy and efficient irrigation system is crucial for any property owner, whether you're managing a lush garden, a sprawling lawn, or an agricultural field. One of the most critical components of any irrigation system is the sprinkler system backflow valve. This device plays a vital role in preventing contaminated water from flowing back into the clean water supply, ensuring the safety and integrity of your water system. Understanding the importance, types, installation, and maintenance of a sprinkler system backflow valve can help you keep your irrigation system running smoothly and safely.

Table of Contents

Understanding the Importance of a Sprinkler System Backflow Valve

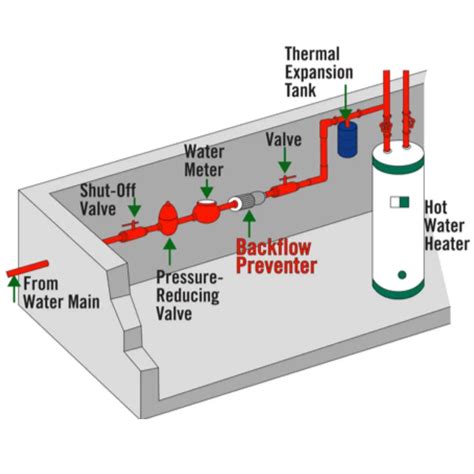

A sprinkler system backflow valve is designed to protect the potable water supply from contamination. Backflow occurs when water flows in the opposite direction, potentially carrying harmful substances back into the clean water supply. This can happen due to backpressure or backsiphonage, both of which can be caused by changes in water pressure or suction.

Backpressure occurs when the water pressure in the irrigation system exceeds the pressure in the public water supply. This can happen if there is a significant elevation difference or if the irrigation system is under high pressure. Backsiphonage, on the other hand, occurs when there is a sudden drop in water pressure in the public supply, creating a vacuum that pulls water from the irrigation system back into the supply.

Both scenarios can lead to the contamination of the potable water supply with fertilizers, pesticides, or other harmful substances. A properly installed and maintained sprinkler system backflow valve prevents this by ensuring that water only flows in one direction—from the clean water supply to the irrigation system.

Types of Sprinkler System Backflow Valves

There are several types of sprinkler system backflow valves, each designed for specific applications and pressure requirements. The most common types include:

Double Check Valve Assembly (DCVA): This type of valve is designed for low-hazard applications where the risk of contamination is minimal. It consists of two check valves that allow water to flow in only one direction.

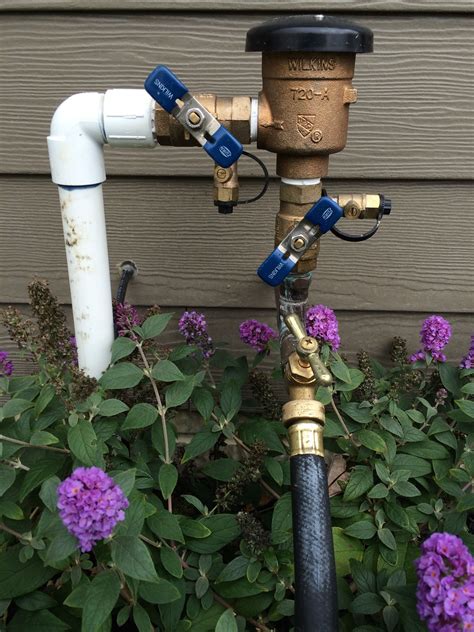

Pressure Vacuum Breaker Assembly (PVB): This valve is suitable for moderate-hazard applications. It includes a check valve and an air inlet valve that opens when the water pressure drops, preventing backsiphonage.
Reduced Pressure Zone Assembly (RPZ): This is the most robust type of backflow valve, designed for high-hazard applications where the risk of contamination is high. It includes two check valves and a relief valve that discharges water to the atmosphere if backflow occurs.

Choosing the right type of sprinkler system backflow valve depends on the specific needs of your irrigation system and the local regulations. It's essential to consult with a professional to determine the best option for your property.

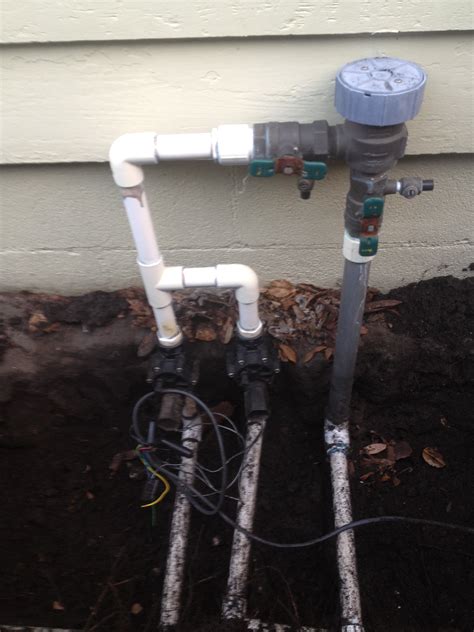

Installation of a Sprinkler System Backflow Valve

Installing a sprinkler system backflow valve requires careful planning and adherence to local codes and regulations. Here are the general steps involved in the installation process:

Select the Location: Choose a location for the valve that is easily accessible for maintenance and inspection. It should be installed above ground and protected from freezing temperatures.
Prepare the Site: Dig a trench or create a pit to accommodate the valve and any necessary piping. Ensure the site is level and stable.
Install the Valve: Connect the valve to the water supply line using appropriate fittings and piping. Ensure all connections are secure and leak-free.
Test the Valve: Once installed, test the valve to ensure it is functioning correctly. This involves checking for leaks, verifying that water flows in the correct direction, and ensuring that the valve activates properly in the event of backflow.

🔧 Note: Always follow the manufacturer's instructions and local regulations when installing a sprinkler system backflow valve. If you are unsure about any aspect of the installation process, consult a professional plumber or irrigation specialist.

Maintenance of a Sprinkler System Backflow Valve

Regular maintenance of your sprinkler system backflow valve is essential to ensure its continued effectiveness and longevity. Here are some key maintenance tasks to perform:

Annual Inspection: Have the valve inspected annually by a certified professional. This includes checking for leaks, ensuring all components are in good working order, and testing the valve's functionality.
Cleaning: Clean the valve and its components to remove any debris or sediment that may have accumulated. This helps prevent clogs and ensures smooth operation.
Lubrication: Lubricate moving parts as recommended by the manufacturer. This helps reduce wear and tear and extends the life of the valve.
Replacement of Parts: Replace any worn or damaged parts promptly to maintain the valve's effectiveness. This may include seals, gaskets, or other components.

By performing regular maintenance, you can ensure that your sprinkler system backflow valve continues to protect your water supply and keep your irrigation system running efficiently.

Common Issues with Sprinkler System Backflow Valves

Despite their importance, sprinkler system backflow valves can encounter various issues that affect their performance. Some common problems include:

Leaks: Leaks can occur at the connections or within the valve itself. Regular inspections can help identify and address leaks promptly.
Clogs: Debris or sediment can accumulate in the valve, causing it to malfunction. Regular cleaning can prevent clogs and ensure smooth operation.
Wear and Tear: Over time, the components of the valve can wear out, leading to reduced performance. Regular maintenance and replacement of worn parts can extend the life of the valve.
Freezing: In cold climates, the valve can freeze if not properly protected. Ensure the valve is installed above ground and insulated to prevent freezing.

Addressing these issues promptly can help maintain the effectiveness of your sprinkler system backflow valve and prevent potential contamination of your water supply.

Regulations and Compliance

The installation and maintenance of sprinkler system backflow valves are subject to local regulations and codes. These regulations are designed to ensure the safety and integrity of the public water supply. It's essential to comply with these regulations to avoid fines and potential legal issues.

Some key regulations to be aware of include:

Local Plumbing Codes: These codes specify the requirements for the installation and maintenance of backflow prevention devices. Ensure your installation complies with these codes.
Health Department Regulations: Local health departments may have specific regulations regarding backflow prevention. Consult with your local health department to ensure compliance.
Water Utility Requirements: Your local water utility may have additional requirements for backflow prevention. Contact your water utility for specific guidelines.

By adhering to these regulations, you can ensure that your sprinkler system backflow valve is installed and maintained correctly, protecting both your property and the public water supply.

Conclusion

In summary, a sprinkler system backflow valve is a critical component of any irrigation system, playing a vital role in preventing contamination of the potable water supply. Understanding the importance, types, installation, and maintenance of these valves can help you keep your irrigation system running smoothly and safely. Regular inspections, cleaning, and adherence to local regulations are essential to ensure the continued effectiveness of your sprinkler system backflow valve. By taking these steps, you can protect your property and the public water supply from potential contamination, ensuring a healthy and efficient irrigation system for years to come.
