Trailer Tail Light Wiring

Embarking on a trailer tail light wiring project can seem daunting, but with the right guidance, it becomes a manageable task. Whether you're a seasoned DIY enthusiast or a beginner, understanding the basics of trailer tail light wiring is crucial for ensuring your trailer is safe and roadworthy. This guide will walk you through the essential steps and considerations for wiring your trailer's tail lights, providing you with the knowledge to complete the job efficiently and safely.

Table of Contents

Understanding Trailer Tail Light Wiring

Before diving into the wiring process, it’s important to understand the components involved in trailer tail light wiring. The primary components include:

Trailer connector
Wiring harness
Tail lights
Brake lights
Turn signals
Ground wire

Each of these components plays a vital role in ensuring your trailer’s lights function correctly. The trailer connector is the point where the trailer’s wiring harness connects to the towing vehicle. The wiring harness distributes power to the various lights, while the ground wire provides a return path for the electrical current.

Gathering the Necessary Tools and Materials

To successfully complete your trailer tail light wiring project, you’ll need a few essential tools and materials. Here’s a list to help you get started:

Wire strippers
Crimping tool
Soldering iron and solder
Electrical tape
Wire connectors
Trailer wiring harness
Trailer connector
Tail lights, brake lights, and turn signals
Ground wire
Multimeter (optional, for testing)

Having these tools and materials on hand will make the wiring process smoother and more efficient.

Preparing for the Wiring Process

Before you begin wiring, it’s essential to prepare your workspace and gather all necessary components. Here are some steps to follow:

Choose a well-lit and spacious area to work in.
Ensure all components are in good condition and free from damage.
Lay out all tools and materials for easy access.
Disconnect the trailer from the towing vehicle to avoid any electrical issues.

By preparing your workspace and components, you’ll create a more organized and efficient working environment.

Wiring the Trailer Tail Lights

Now that you have all the necessary tools and materials, it’s time to start wiring your trailer’s tail lights. Follow these steps for a successful installation:

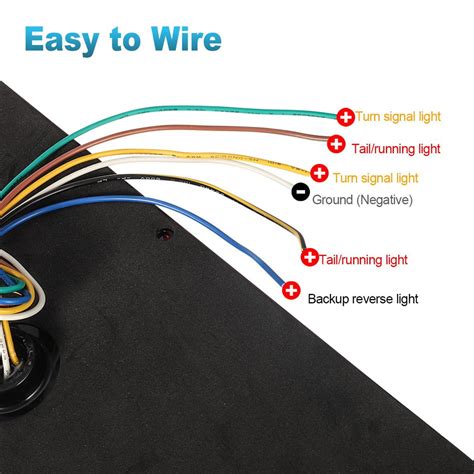

Identify the Wires: Start by identifying the wires in your trailer’s wiring harness. Typically, the wires are color-coded for easy identification. Common colors include:

Brown: Tail lights
Yellow: Left turn signal
Green: Right turn signal
White: Ground
Red: Brake lights

Connect the Ground Wire: The ground wire is crucial for completing the electrical circuit. Connect the white ground wire to a clean, bare metal surface on the trailer frame. Ensure a secure connection using a bolt or screw.
Connect the Tail Lights: Connect the brown wire to the tail lights. This wire provides power to the tail lights, ensuring they illuminate when the vehicle’s headlights are on.
Connect the Turn Signals: Connect the yellow wire to the left turn signal and the green wire to the right turn signal. These wires control the turn signals, allowing you to indicate direction changes safely.
Connect the Brake Lights: Connect the red wire to the brake lights. This wire activates the brake lights when you apply the brakes, alerting other drivers to your actions.
Secure the Connections: Use wire connectors or soldering to secure all connections. Cover the connections with electrical tape to protect them from moisture and damage.

By following these steps, you’ll ensure that your trailer’s tail lights are wired correctly and function as intended.

🔧 Note: Always double-check your connections to ensure they are secure and free from damage. Loose or damaged connections can lead to electrical issues and potential safety hazards.

Testing the Trailer Tail Light Wiring

After completing the wiring process, it’s crucial to test your trailer’s tail lights to ensure they are functioning correctly. Here are some steps to follow:

Reconnect the Trailer: Reconnect the trailer to the towing vehicle.
Turn on the Vehicle’s Headlights: Turn on the vehicle’s headlights to check if the trailer’s tail lights illuminate.
Test the Turn Signals: Activate the left and right turn signals to ensure they are functioning correctly.
Test the Brake Lights: Apply the brakes to check if the trailer’s brake lights illuminate.
Inspect for Proper Functioning: Walk around the trailer to inspect all lights and ensure they are functioning correctly.

If any lights are not functioning, double-check your connections and wiring to identify and resolve the issue.

🔧 Note: If you encounter any issues during testing, use a multimeter to check for continuity and voltage at each connection. This can help you pinpoint the problem and make the necessary repairs.

Troubleshooting Common Issues

Even with careful planning and execution, issues can arise during the trailer tail light wiring process. Here are some common problems and their solutions:

Lights Not Working: If the lights are not working, check for loose or damaged connections. Ensure all wires are securely connected and free from damage.
Flickering Lights: Flickering lights can indicate a loose connection or a faulty wire. Inspect all connections and wires for any signs of damage or wear.
Burnt-Out Bulbs: If a bulb is burnt out, replace it with a new one. Ensure the new bulb is the correct type and wattage for your trailer’s lights.
Ground Issues: If the lights are not functioning correctly, the ground wire may be the culprit. Ensure the ground wire is securely connected to a clean, bare metal surface on the trailer frame.

By addressing these common issues, you can ensure your trailer’s tail lights function correctly and safely.

Maintaining Your Trailer Tail Light Wiring

Maintaining your trailer tail light wiring is essential for ensuring long-term functionality and safety. Here are some tips for maintaining your trailer’s wiring:

Regular Inspections: Regularly inspect the wiring and connections for any signs of damage or wear. Address any issues promptly to prevent further damage.
Keep Connections Secure: Ensure all connections are secure and free from corrosion. Use electrical tape or heat shrink tubing to protect connections from moisture and damage.
Replace Damaged Wires: If you notice any damaged wires, replace them immediately to prevent electrical issues.
Clean the Trailer Frame: Keep the trailer frame clean and free from rust or corrosion. This ensures a good ground connection and prevents electrical issues.

By following these maintenance tips, you can extend the lifespan of your trailer tail light wiring and ensure it functions correctly for years to come.

🔧 Note: Regular maintenance is key to preventing electrical issues and ensuring the safety of your trailer. Make it a habit to inspect your trailer's wiring and connections regularly.

Advanced Trailer Tail Light Wiring

For those looking to enhance their trailer’s lighting system, advanced wiring options are available. These options can provide additional safety and functionality. Here are some advanced wiring configurations to consider:

LED Lights: Upgrade to LED lights for improved visibility and energy efficiency. LED lights are brighter and last longer than traditional incandescent bulbs.
Backup Lights: Install backup lights to improve visibility when reversing. Backup lights can be wired to the vehicle’s reverse lights for automatic activation.
Clearance Lights: Add clearance lights to enhance visibility and comply with regulations. Clearance lights can be wired to the vehicle’s headlights for automatic activation.
Auxiliary Power: Install an auxiliary power outlet to provide additional power for accessories such as refrigerators, TVs, or other electronic devices.

By exploring these advanced wiring options, you can enhance your trailer’s functionality and safety.

Safety Considerations for Trailer Tail Light Wiring

Safety is paramount when working with electrical systems. Here are some safety considerations to keep in mind during your trailer tail light wiring project:

Disconnect Power: Always disconnect the trailer from the towing vehicle before beginning any wiring work. This prevents electrical shocks and potential damage to the vehicle’s electrical system.
Use Proper Tools: Use the appropriate tools for the job, such as wire strippers, crimping tools, and soldering irons. Ensure your tools are in good condition and functioning properly.
Avoid Water and Moisture: Keep your wiring and connections dry and free from moisture. Water and moisture can cause electrical shorts and corrosion, leading to potential safety hazards.
Inspect for Damage: Regularly inspect your wiring and connections for any signs of damage or wear. Address any issues promptly to prevent further damage and ensure safety.

By following these safety considerations, you can ensure a safe and successful trailer tail light wiring project.

🔧 Note: Always prioritize safety when working with electrical systems. Taking the necessary precautions can prevent accidents and ensure a successful project.

Common Trailer Connector Types

Understanding the different types of trailer connectors is essential for ensuring compatibility and proper wiring. Here are some common trailer connector types and their uses:

Connector Type	Pins	Uses
4-Pin Flat	4	Basic lighting functions (tail lights, brake lights, turn signals)
5-Pin Flat	5	Additional functions such as backup lights or electric brakes
6-Pin Round	6	Commonly used for utility trailers with electric brakes
7-Pin Round	7	Standard for trailers with electric brakes and additional functions
7-Pin Blade	7	Commonly used for larger trailers with electric brakes and additional functions

Choosing the right connector type ensures compatibility with your trailer and towing vehicle, providing the necessary functions for safe operation.

🔧 Note: Always verify the connector type required for your trailer and towing vehicle to ensure proper wiring and functionality.

Conclusion

Trailer tail light wiring is a crucial aspect of ensuring your trailer is safe and roadworthy. By understanding the components involved, gathering the necessary tools and materials, and following the proper wiring steps, you can successfully complete your trailer tail light wiring project. Regular maintenance and safety considerations are essential for long-term functionality and safety. Whether you’re a seasoned DIY enthusiast or a beginner, this guide provides the knowledge and steps to complete your trailer tail light wiring project efficiently and safely.
