Understanding the Unit Step Function

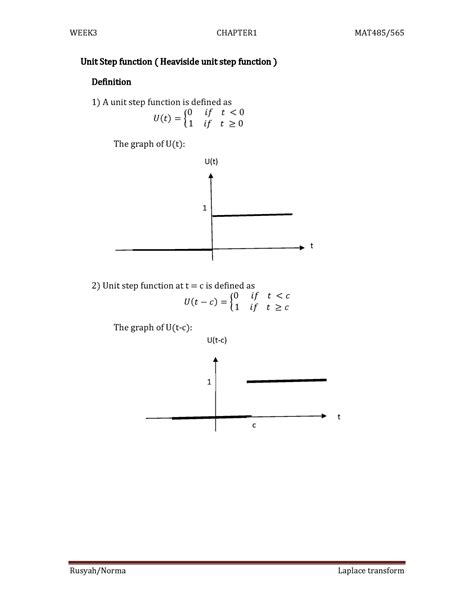

The Unit Step Function, denoted as u(t), is defined as:

t	u(t)
t < 0	0
t ≥ 0	1

This means that the function is zero for all negative values of t and one for all non-negative values of t. The Unit Step Function is discontinuous at t = 0, which is a key characteristic that distinguishes it from other functions.

Applications of the Unit Step Function

The Unit Step Function has numerous applications in various fields. Some of the most notable applications include:

Signal Processing: In signal processing, the Unit Step Function is used to model sudden changes in signals. For example, it can represent a switch being turned on or off.
Control Systems: In control systems, the Unit Step Function is often used as an input to test the stability and performance of a system. The response of a system to a step input is a common way to analyze its behavior.
Electrical Engineering: In electrical engineering, the Unit Step Function is used to analyze the transient response of circuits. It helps in understanding how a circuit responds to sudden changes in voltage or current.
Mathematics: In mathematics, the Unit Step Function is used in the study of differential equations and integral transforms. It is a building block for more complex functions and is used to solve various mathematical problems.

Properties of the Unit Step Function

The Unit Step Function has several important properties that make it a valuable tool in various applications. Some of these properties include:

Discontinuity: The Unit Step Function is discontinuous at t = 0. This property is crucial in applications where sudden changes need to be modeled.
Linearity: The Unit Step Function is not linear, meaning that it does not satisfy the properties of linearity. However, it can be used in conjunction with linear systems to analyze their behavior.
Derivative: The derivative of the Unit Step Function is the Dirac delta function, which is a generalized function used to model impulses. This property is important in the study of impulse responses and convolution.
Integral: The integral of the Unit Step Function is the ramp function, which is a linear function that increases with time. This property is useful in the analysis of systems with constant inputs.

Unit Step Function in Laplace Transform

The Laplace Transform is a powerful tool used in the analysis of linear time-invariant systems. The Unit Step Function plays a crucial role in the Laplace Transform, as it is used to represent constant inputs. The Laplace Transform of the Unit Step Function is given by:

U(s) = 1/s

This transform is useful in solving differential equations and analyzing the stability of systems. It allows engineers and mathematicians to work with complex systems in the frequency domain, making it easier to understand their behavior.

Unit Step Function in Z-Transform

The Z-Transform is another important tool used in the analysis of discrete-time systems. The Unit Step Function is also used in the Z-Transform to represent constant inputs. The Z-Transform of the Unit Step Function is given by:

U(z) = z/(z - 1)

This transform is useful in the analysis of digital filters and control systems. It allows engineers to work with discrete-time systems in the z-domain, making it easier to design and analyze filters and controllers.

Unit Step Function in Fourier Transform

The Fourier Transform is a mathematical technique used to express a time signal in terms of the frequencies it contains. The Unit Step Function is used in the Fourier Transform to represent sudden changes in signals. The Fourier Transform of the Unit Step Function is given by:

U(ω) = πδ(ω) + 1/jω

Where δ(ω) is the Dirac delta function and j is the imaginary unit. This transform is useful in the analysis of signals and systems, as it allows engineers to work with signals in the frequency domain.

Unit Step Function in Convolution

Convolution is a mathematical operation used to combine two signals to produce a third signal. The Unit Step Function is often used in convolution to model sudden changes in signals. The convolution of the Unit Step Function with another function f(t) is given by:

u(t) * f(t) = ∫ from -∞ to t f(τ) dτ

This operation is useful in the analysis of systems with impulse responses. It allows engineers to understand how a system responds to different inputs and to design filters and controllers.

💡 Note: The convolution operation is commutative, meaning that the order of the functions does not affect the result. However, the Unit Step Function is not commutative with all functions, so care must be taken when performing convolution.

Unit Step Function in Differential Equations

The Unit Step Function is often used in the solution of differential equations. It is used to model sudden changes in the input or initial conditions of a system. For example, consider the differential equation:

dy/dt + 3y = u(t)

Where u(t) is the Unit Step Function. The solution to this equation is given by:

y(t) = (1/3) * (1 - e^(-3t)) * u(t)

This solution shows how the system responds to a sudden change in input. The Unit Step Function is a valuable tool in the analysis of differential equations, as it allows engineers to model and solve complex systems.

💡 Note: The Unit Step Function is not the only function that can be used to model sudden changes in differential equations. Other functions, such as the Dirac delta function, can also be used depending on the specific application.

Unit Step Function in Control Systems

In control systems, the Unit Step Function is often used as an input to test the stability and performance of a system. The response of a system to a step input is a common way to analyze its behavior. For example, consider a system with the transfer function:

H(s) = 1/(s^2 + 2s + 1)

The response of this system to a Unit Step Function input is given by:

y(t) = (1 - e^(-t) * (cos(t) + sin(t))) * u(t)

This response shows how the system behaves over time in response to a sudden change in input. The Unit Step Function is a valuable tool in the analysis of control systems, as it allows engineers to test and design systems with specific performance characteristics.

💡 Note: The Unit Step Function is not the only input that can be used to test control systems. Other inputs, such as impulse inputs or ramp inputs, can also be used depending on the specific application.

In the realm of control systems, the Unit Step Function is particularly useful for understanding the transient response of a system. The transient response refers to the behavior of a system as it transitions from one steady-state condition to another. By analyzing the system's response to a step input, engineers can gain insights into how quickly the system reaches its new steady state and how it behaves during the transition.

For instance, consider a second-order system with the transfer function:

H(s) = ω_n² / (s² + 2ζω_ns + ω_n²)

Where ω_n is the natural frequency and ζ is the damping ratio. The response of this system to a Unit Step Function input is given by:

y(t) = (1 - e^(-ζω_nt) * (cos(ω_dt) + (ζ/√(1-ζ²)) * sin(ω_dt))) * u(t)

Where ω_d is the damped natural frequency. This response shows how the system's natural frequency and damping ratio affect its transient behavior. The Unit Step Function is a valuable tool in the analysis of control systems, as it allows engineers to design systems with specific transient response characteristics.

💡 Note: The Unit Step Function is not the only input that can be used to test the transient response of control systems. Other inputs, such as impulse inputs or ramp inputs, can also be used depending on the specific application.

Unit Step Function in Signal Processing

In signal processing, the Unit Step Function is used to model sudden changes in signals. For example, it can represent a switch being turned on or off. The Unit Step Function is also used in the design of digital filters. Digital filters are used to process signals in the digital domain, and the Unit Step Function is used to model the input signals to these filters.

Consider a digital filter with the transfer function:

H(z) = b₀ + b₁z^-1 + b₂z^-2 / (1 + a₁z^-1 + a₂z^-2)

The response of this filter to a Unit Step Function input is given by:

y[n] = (b₀ + b₁ + b₂) * u[n] - (a₁ + a₂) * y[n-1] - a₂ * y[n-2]

This response shows how the filter processes the input signal. The Unit Step Function is a valuable tool in the design of digital filters, as it allows engineers to test and analyze the filter's behavior.

💡 Note: The Unit Step Function is not the only input that can be used to test digital filters. Other inputs, such as impulse inputs or ramp inputs, can also be used depending on the specific application.

In the field of signal processing, the Unit Step Function is also used in the analysis of discrete-time systems. Discrete-time systems are systems that process signals at discrete intervals of time. The Unit Step Function is used to model the input signals to these systems, and the response of the system to a step input is analyzed to understand its behavior.

For example, consider a discrete-time system with the transfer function:

H(z) = z / (z - 1)

The response of this system to a Unit Step Function input is given by:

y[n] = u[n]

This response shows how the system processes the input signal. The Unit Step Function is a valuable tool in the analysis of discrete-time systems, as it allows engineers to understand the system's behavior and design filters and controllers.

💡 Note: The Unit Step Function is not the only input that can be used to test discrete-time systems. Other inputs, such as impulse inputs or ramp inputs, can also be used depending on the specific application.

In addition to its use in the analysis of discrete-time systems, the Unit Step Function is also used in the design of digital filters. Digital filters are used to process signals in the digital domain, and the Unit Step Function is used to model the input signals to these filters. By analyzing the filter's response to a step input, engineers can gain insights into its behavior and design filters with specific characteristics.

For instance, consider a digital filter with the transfer function:

H(z) = (1 - z^-1) / (1 + 0.5z^-1)

The response of this filter to a Unit Step Function input is given by:

y[n] = u[n] - 0.5 * y[n-1]

In the realm of signal processing, the Unit Step Function is also used in the analysis of continuous-time systems. Continuous-time systems are systems that process signals continuously over time. The Unit Step Function is used to model the input signals to these systems, and the response of the system to a step input is analyzed to understand its behavior.

For example, consider a continuous-time system with the transfer function:

H(s) = 1 / (s + 1)

The response of this system to a Unit Step Function input is given by:

y(t) = (1 - e^(-t)) * u(t)

This response shows how the system processes the input signal. The Unit Step Function is a valuable tool in the analysis of continuous-time systems, as it allows engineers to understand the system's behavior and design filters and controllers.

💡 Note: The Unit Step Function is not the only input that can be used to test continuous-time systems. Other inputs, such as impulse inputs or ramp inputs, can also be used depending on the specific application.

In summary, the Unit Step Function is a fundamental concept in signal processing. It is used to model sudden changes in signals and to analyze the behavior of systems. By understanding the Unit Step Function and its properties, engineers can design and analyze systems with specific characteristics.

In the field of signal processing, the Unit Step Function is also used in the analysis of analog filters. Analog filters are used to process signals in the analog domain, and the Unit Step Function is used to model the input signals to these filters. By analyzing the filter's response to a step input, engineers can gain insights into its behavior and design filters with specific characteristics.

For instance, consider an analog filter with the transfer function:

H(s) = 1 / (s + 1)

The response of this filter to a Unit Step Function input is given by:

y(t) = (1 - e^(-t)) * u(t)

This response shows how the filter processes the input signal. The Unit Step Function is a valuable tool in the analysis of analog filters, as it allows engineers to test and analyze the filter's behavior.

💡 Note: The Unit Step Function is not the only input that can be used to test analog filters. Other inputs, such as impulse inputs or ramp inputs, can also be used depending on the specific application.

In addition to its use in the analysis of analog filters, the Unit Step Function is also used in the design of digital filters. Digital filters are used to process signals in the digital domain, and the Unit Step Function is used to model the input signals to these filters. By analyzing the filter's response to a step input, engineers can gain insights into its behavior and design filters with specific characteristics.

For example, consider a digital filter with the transfer function:

H(z) = (1 - z^-1) / (1 + 0.5z^-1)

The response of this filter to a Unit Step Function input is given by:

y[n] = u[n] - 0.5 * y[n-1]

In the realm of signal processing, the Unit Step Function is also used in the analysis of discrete-time systems. Discrete-time systems are systems that process signals at discrete intervals of time. The Unit Step Function is used to model the input signals to these systems, and the response of the system to a step input is analyzed to understand its behavior.

For example, consider a discrete-time system with the transfer function:

H(z) = z / (z - 1)

The response of this system to a Unit Step Function input is given by:

y[n] = u[n]

In the field of signal processing, the Unit Step Function is also used in the analysis of continuous-time systems. Continuous-time systems are systems that process signals continuously over time. The Unit Step Function is used to model the input signals to these systems, and the response of the system to a step input is analyzed to understand its behavior.

For example, consider a continuous-time system with the transfer function:

H(s) = 1 / (s + 1)

The response of this system to a Unit Step Function input is given by:

y(t) = (1 - e^(-t)) *
