In the realm of industrial and mechanical engineering, the term What Is A Flange often comes up. A flange is a critical component used to connect pipes, valves, pumps, and other equipment to form a piping system. Flanges provide a means of connecting two sections of pipe or other equipment in a way that allows for easy assembly, disassembly, and maintenance. They are essential in various industries, including oil and gas, chemical processing, water treatment, and more.
Understanding Flanges: Types and Applications

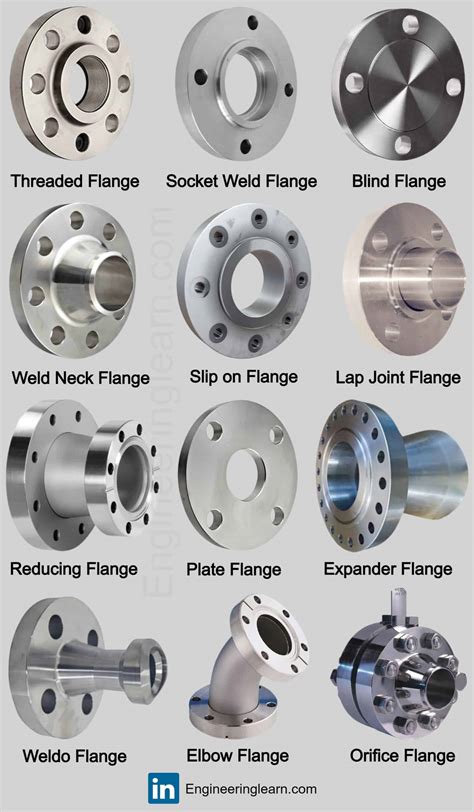

Flanges come in various types, each designed for specific applications and conditions. Understanding the different types of flanges and their uses is crucial for selecting the right one for a particular job.
Weld Neck Flanges
Weld neck flanges are designed to be welded to the pipe. They have a long tapered hub that can be welded to the pipe, providing a smooth transition and reducing turbulence. These flanges are ideal for high-pressure and high-temperature applications. They are commonly used in pipelines, pressure vessels, and other critical systems where reliability is paramount.
Slip-On Flanges
Slip-on flanges are designed to slip over the pipe and are then welded in place. They are easier to align and weld compared to weld neck flanges but are generally less suitable for high-pressure applications. Slip-on flanges are cost-effective and are often used in low-pressure systems.
Socket Weld Flanges
Socket weld flanges are similar to slip-on flanges but have a recessed area that fits over the pipe. The pipe is inserted into the flange and then welded from the outside. These flanges are commonly used in small-bore piping systems where the risk of crevice corrosion is a concern.
Threaded Flanges
Threaded flanges are designed with threads that allow them to be screwed onto the pipe. They are easy to install and do not require welding, making them suitable for applications where welding is not feasible. However, they are generally limited to low-pressure and low-temperature applications.
Blind Flanges
Blind flanges are solid and do not have a bore. They are used to close the end of a piping system or to create a blank-off point. Blind flanges are essential for maintenance and testing purposes, allowing for the isolation of a section of the pipeline.
Lap Joint Flanges
Lap joint flanges are designed to fit over a stub end, which is welded to the pipe. The flange itself is not welded to the pipe, allowing for easy disassembly and maintenance. These flanges are commonly used in applications where frequent disassembly is required.
Orifice Flanges
Orifice flanges are used to measure the flow rate of fluids in a pipeline. They have a specific design that includes a hole for inserting an orifice plate, which helps in measuring the flow rate accurately. These flanges are crucial in industries where precise flow measurement is essential.
Materials Used in Flanges
Flanges are made from various materials, each chosen based on the specific requirements of the application. The most common materials include:
- Carbon Steel: Widely used due to its strength and cost-effectiveness. Suitable for low to medium-pressure applications.
- Stainless Steel: Offers excellent corrosion resistance and is ideal for applications involving corrosive fluids.
- Alloy Steel: Provides high strength and resistance to high temperatures, making it suitable for demanding applications.
- Ductile Iron: Known for its toughness and resistance to shock, often used in water and wastewater systems.
- Cast Iron: Cost-effective and suitable for low-pressure applications, commonly used in plumbing and drainage systems.
Standards and Specifications
Flanges are manufactured according to various standards and specifications to ensure consistency and reliability. Some of the most commonly referenced standards include:
- ASME B16.5: Covers pressure-temperature ratings, materials, dimensions, tolerances, marking, and testing for pipe flanges and flanged fittings.
- ASME B16.47: Specifies large diameter steel flanges.
- API 605: Covers carbon and low-alloy steel flanges for high-pressure transmission systems.
- MSS SP-44: Provides standards for steel pipe flanges, flanged fittings, and valves for use in the petroleum and natural gas industries.
Selection Criteria for Flanges
Choosing the right flange involves considering several factors to ensure the flange meets the specific requirements of the application. Key selection criteria include:
- Pressure and Temperature: The flange must be able to withstand the operating pressure and temperature of the system.
- Material Compatibility: The flange material should be compatible with the fluid being transported to prevent corrosion and other issues.
- Size and Dimensions: The flange must match the size and dimensions of the pipe or equipment it is connecting.
- Type of Connection: The flange type should be suitable for the method of connection, whether it is welded, threaded, or slip-on.
- Cost: The cost of the flange should be considered, especially in large-scale projects where cost savings can be significant.
Installation and Maintenance of Flanges
Proper installation and maintenance of flanges are crucial for ensuring the reliability and longevity of the piping system. Here are some key steps and considerations:
Installation Steps
1. Prepare the Pipe: Ensure the pipe ends are clean and free of debris. Bevel the pipe ends if necessary for welding.
2. Align the Flanges: Align the flanges with the pipe ends, ensuring they are square and properly positioned.
3. Welding: If welding is required, use appropriate welding techniques and materials to ensure a strong and leak-free connection.
4. Bolting: Use the correct bolts and gaskets to secure the flanges. Tighten the bolts in a star pattern to ensure even distribution of pressure.
5. Testing: Conduct pressure testing to ensure the flange connection is secure and leak-free.
🔧 Note: Always follow the manufacturer's guidelines and industry standards for installation to ensure safety and reliability.
Maintenance Tips
1. Regular Inspections: Conduct regular inspections to check for signs of wear, corrosion, or leaks.
2. Cleaning: Keep the flanges clean to prevent the buildup of debris and corrosion.
3. Replacement of Gaskets: Replace gaskets as needed to maintain a tight seal.
4. Bolts and Nuts: Check and tighten bolts and nuts regularly to ensure the flange connection remains secure.
🛠️ Note: Proper maintenance can extend the lifespan of flanges and prevent costly repairs and downtime.
Common Issues and Troubleshooting
Despite proper installation and maintenance, issues can still arise with flanges. Some common problems and their solutions include:
- Leaks: Check for damaged gaskets, improperly tightened bolts, or misaligned flanges. Replace gaskets and ensure proper alignment and tightening.
- Corrosion: Inspect for signs of corrosion and replace affected flanges. Use corrosion-resistant materials if necessary.
- Cracking: Inspect for cracks and replace damaged flanges. Ensure proper welding techniques and materials are used.
- Misalignment: Check for misaligned flanges and realign them. Use spacers or shims if necessary.
By addressing these issues promptly, you can maintain the integrity and reliability of your piping system.
Flange Gaskets: Types and Selection
Gaskets play a crucial role in sealing the connection between flanges. The type of gasket used depends on the application and the conditions it will face. Common types of gaskets include:
| Gasket Type | Material | Applications |
|---|---|---|
| Non-Metallic Gaskets | Rubber, PTFE, Graphite | Low to medium pressure, non-corrosive fluids |
| Metallic Gaskets | Stainless Steel, Inconel, Monel | High pressure, high temperature, corrosive fluids |
| Semi-Metallic Gaskets | Combination of metal and non-metal | High pressure, high temperature, corrosive fluids |
| Spiral Wound Gaskets | Stainless Steel with PTFE or Graphite | High pressure, high temperature, corrosive fluids |
Selecting the right gasket involves considering the operating conditions, the type of fluid, and the material compatibility. Always refer to industry standards and manufacturer guidelines for proper gasket selection.
Flanges are indispensable components in various industrial applications, providing a reliable means of connecting pipes and equipment. Understanding the different types of flanges, their materials, and installation methods is essential for ensuring the integrity and longevity of your piping system. By following best practices for selection, installation, and maintenance, you can minimize issues and maximize the performance of your flanges.
