In the realm of construction and engineering, the term What Is A Girder often comes up, but what exactly is a girder? A girder is a significant structural element used to support loads and distribute weight evenly across a structure. Girders are essential in various construction projects, from bridges and buildings to industrial facilities. Understanding the role and types of girders can provide valuable insights into their importance in modern engineering.
Understanding Girders
A girder is a horizontal support beam used in construction to support loads. It is typically made from materials like steel, concrete, or wood, and its primary function is to transfer the weight of the structure to its foundations. Girders are crucial in ensuring the stability and safety of buildings and bridges, making them indispensable in civil engineering.
Types of Girders
Girders come in various types, each designed for specific applications and load-bearing requirements. The most common types include:

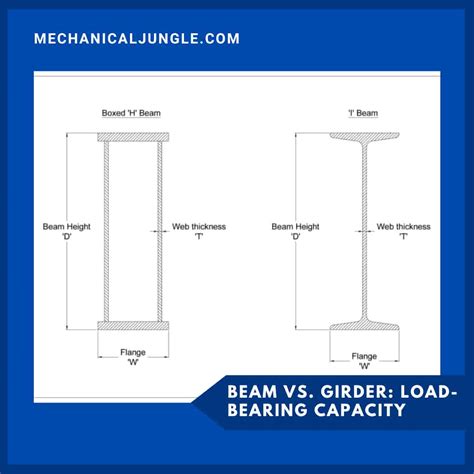

- I-Beam Girders: These are shaped like the letter "I" and are widely used due to their high strength-to-weight ratio. They are commonly made from steel and are ideal for supporting heavy loads.

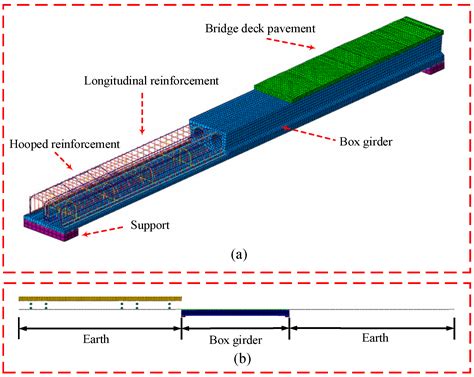

- Box Girders: These have a rectangular or square cross-section and are often used in bridge construction. They provide excellent torsional resistance and are suitable for long spans.
- T-Beam Girders: Shaped like the letter "T," these girders are used in both residential and commercial construction. They are effective in supporting floors and roofs.
- Plate Girders: These are fabricated from steel plates and are used in situations where standard I-beams are not sufficient. They offer flexibility in design and can be customized to meet specific load requirements.
Materials Used in Girders
The choice of material for girders depends on the specific requirements of the project. The most commonly used materials include:
- Steel: Known for its high strength and durability, steel is the most popular choice for girders. It can withstand heavy loads and is resistant to corrosion when properly treated.
- Concrete: Reinforced concrete girders are used in various construction projects. They are cost-effective and provide good compressive strength.
- Wood: Wooden girders are used in smaller structures and residential buildings. They are eco-friendly and relatively easy to work with, but they are not suitable for heavy loads.
Applications of Girders
Girders are used in a wide range of applications, including:
- Bridge Construction: Girders are essential in bridge construction, providing the necessary support to span long distances. They are used in both road and railway bridges.
- Building Construction: In buildings, girders support floors, roofs, and walls. They ensure the structural integrity of the building and distribute the weight evenly.
- Industrial Facilities: Girders are used in industrial settings to support heavy machinery and equipment. They provide the necessary strength to handle the loads and vibrations.
Design Considerations for Girders
Designing girders involves several considerations to ensure they meet the required specifications. Key factors include:
- Load Capacity: The girder must be able to support the expected load without failing. This includes both dead loads (the weight of the structure itself) and live loads (the weight of people, vehicles, or equipment).
- Span Length: The distance between supports affects the design of the girder. Longer spans require stronger and more robust girders.
- Material Properties: The choice of material influences the girder's strength, durability, and cost. Engineers must consider the material's properties to ensure it meets the project's requirements.
- Environmental Factors: Girders must be designed to withstand environmental conditions such as temperature changes, humidity, and corrosion. Proper treatment and maintenance are essential to extend their lifespan.
Installation and Maintenance of Girders
Proper installation and maintenance are crucial for the longevity and performance of girders. Here are some key steps involved:
- Site Preparation: The site must be prepared to ensure a stable foundation for the girders. This includes clearing the area, leveling the ground, and ensuring proper drainage.
- Installation: Girders are typically installed using cranes or other heavy machinery. They must be positioned accurately and secured to the supports to ensure stability.
- Inspection: Regular inspections are necessary to detect any signs of wear, corrosion, or damage. Early detection can prevent failures and extend the girder's lifespan.
- Maintenance: Regular maintenance includes cleaning, painting, and applying protective coatings to prevent corrosion. Any damaged or weakened sections should be repaired or replaced promptly.
🔧 Note: Always follow safety guidelines and regulations when installing and maintaining girders to ensure the safety of workers and the integrity of the structure.
Common Issues with Girders
Despite their strength and durability, girders can face several issues over time. Some common problems include:
- Corrosion: Exposure to moisture and harsh environmental conditions can lead to corrosion, weakening the girder's structure.
- Fatigue: Repeated loading and unloading can cause fatigue, leading to cracks and eventual failure.
- Overloading: Exceeding the girder's load capacity can cause it to bend, crack, or collapse.
- Improper Installation: Incorrect installation can lead to instability and failure, compromising the entire structure.
Advancements in Girder Technology
Advancements in materials science and engineering have led to significant improvements in girder technology. Some notable developments include:
- High-Strength Steel: The use of high-strength steel allows for lighter and more efficient girders without compromising strength.
- Composite Materials: Composite materials, such as fiber-reinforced polymers, offer lightweight and corrosion-resistant alternatives to traditional materials.
- Advanced Manufacturing Techniques: Techniques like 3D printing and automated welding improve the precision and efficiency of girder fabrication.
These advancements have led to more durable, efficient, and cost-effective girders, enhancing their performance in various applications.
Case Studies: Girders in Action
To better understand the practical applications of girders, let's look at a few case studies:
- Golden Gate Bridge: This iconic bridge features steel girders that span the Golden Gate Strait. The girders provide the necessary support to handle the heavy traffic and withstand the harsh marine environment.
- Burj Khalifa: The tallest building in the world uses a combination of steel and concrete girders to support its massive structure. The girders ensure the building's stability and safety.
- Industrial Warehouses: Large industrial warehouses often use steel girders to support heavy machinery and equipment. The girders provide the necessary strength to handle the loads and vibrations.
These case studies illustrate the versatility and importance of girders in various construction projects.
Girders play a crucial role in modern construction and engineering. Understanding What Is A Girder, their types, materials, applications, and design considerations is essential for anyone involved in the field. By ensuring proper installation, maintenance, and addressing common issues, girders can provide long-lasting support and stability to structures, making them indispensable in the world of civil engineering.
